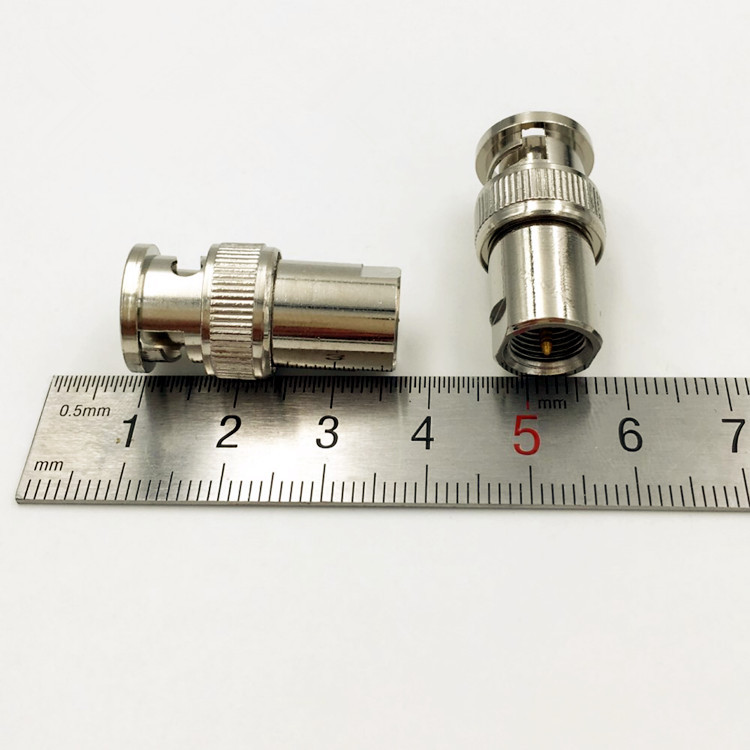

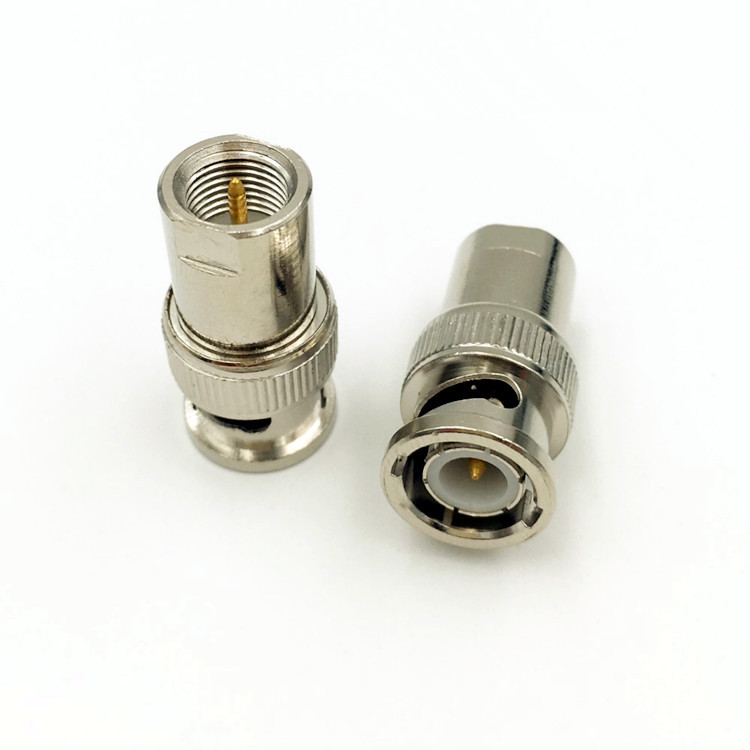

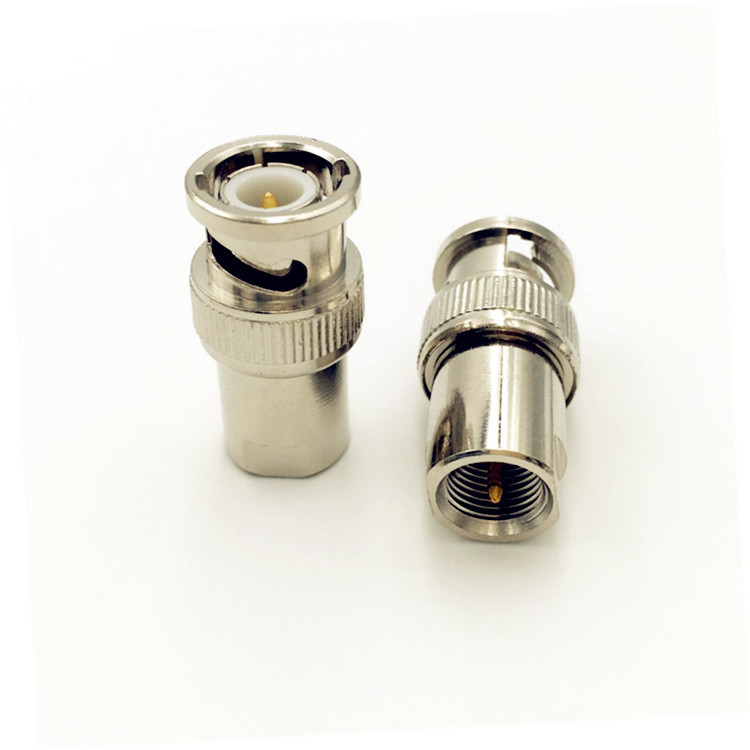

Name: BNC Male to FME Male Coaxial RF Adapter for Ham Radio Wilson Booster WiFi Radio GPS Antenna
Brand: https://keenantech.net/
SKU: FME/BNC-JJ
Availability: InStock
Rating: 5 (1 reviews)

Description

BNC Male to FME Male Coaxial RF Adapter for Ham Radio Wilson Booster WiFi Radio GPS Antenna

Overview

RF adapters cost effective solution, which is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.

RF adapter product line includes in-series RF adapters design and between series adapter designs as well as T and Cross RF adapters.

Interface types are included in RF adapter ,such as SMA, TNC, N and BNC,which are available in male, female, plug, jack, receptacle gender, in 50 Ohm impedance and in standard polarity or reverse polarity.

RF adapters are available in quick disconnect (QD), push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 hole panel configurations. RF adapters in standard and high performance with brass body.

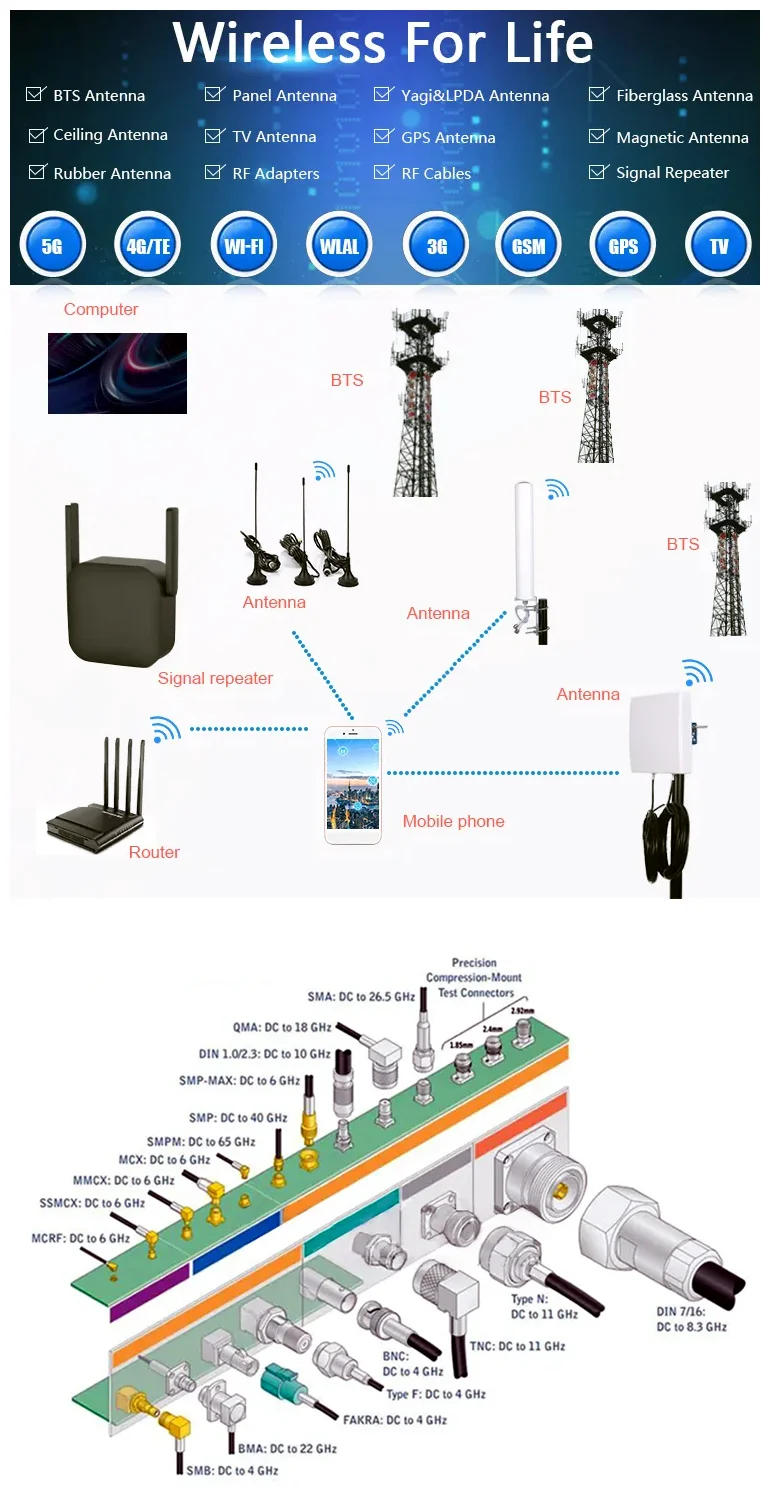

Application 3.png

Electrical Characteristics

Name	BNC to FME adapter
Impedance	50Ω
Frequency range	0~12GHz
Working Voltage	2700V max
Withstand Voltage	4000V rms
VSWR Straight Rigth Angle	≤ 1.2 ≤ 1.3
Contact resistance -center contact -outer contact	≤5mΩ ≤5mΩ
Insulation resistance	≥10000MΩ
Temperature range	-55°C~+155°C
Durability(matings)	>500

Construction

Piece part	Material	plating
Body	Brass	Nickel plated
Center conductor	Brass or Phosphor Bronze	Gold or silver plated
Crimping suite	Copper alloy	Nickel plated
O-ring sealing	6146 silastic
Insulator	PTFE

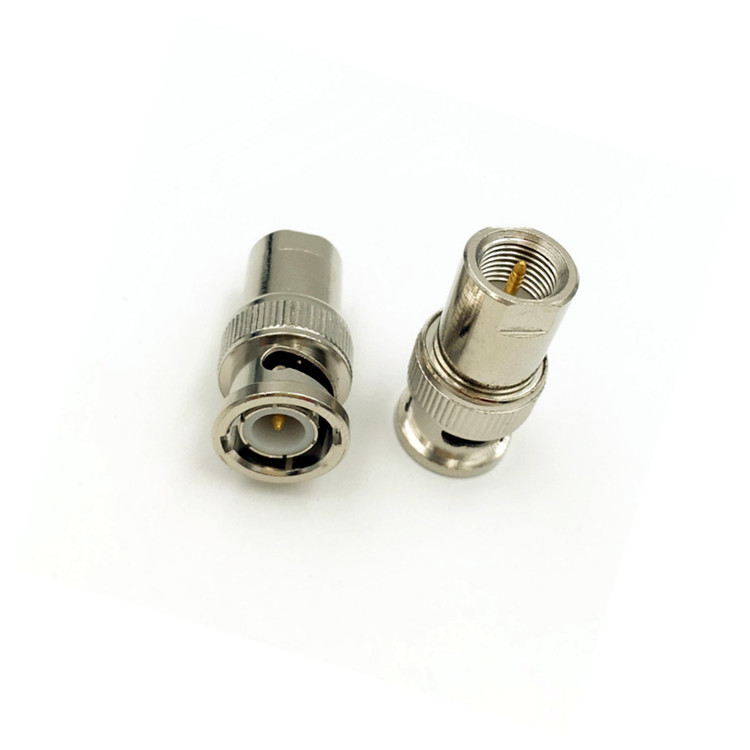

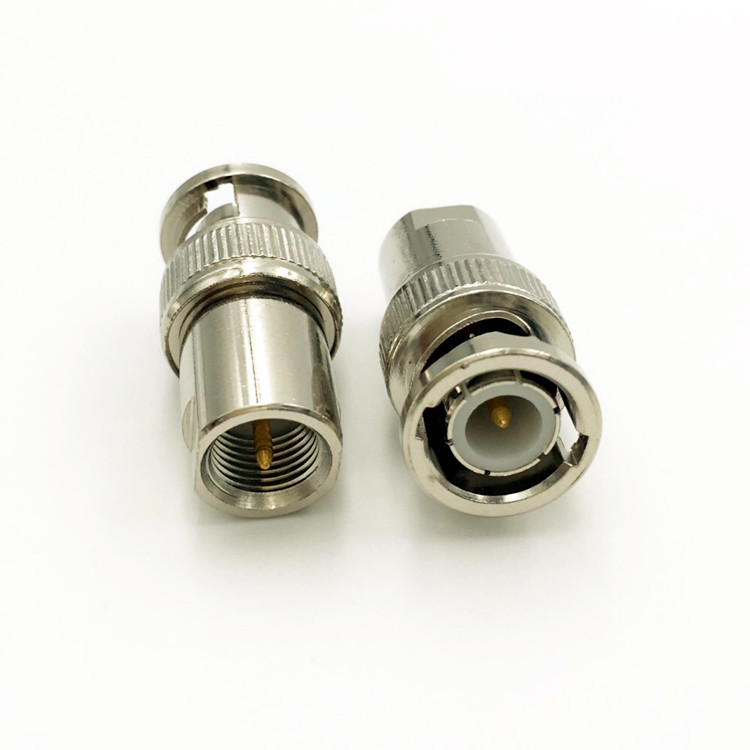

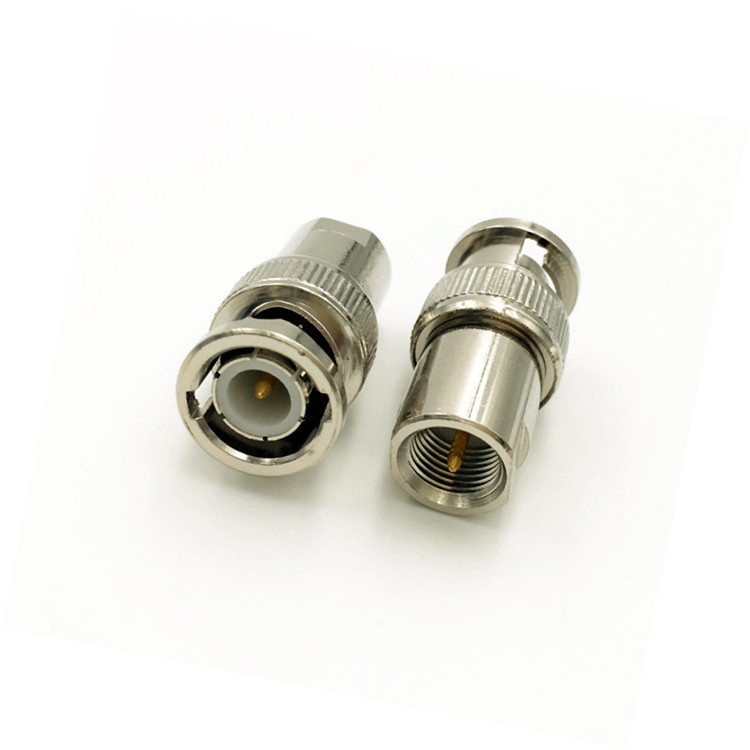

FME-BNC-JJ (1).jpg FME-BNC-JJ (1)_.jpg
