Best Price Low Loss 50ohm RG8 LMR400 RG213 Coaxial Cable for Telecommunication
Overview

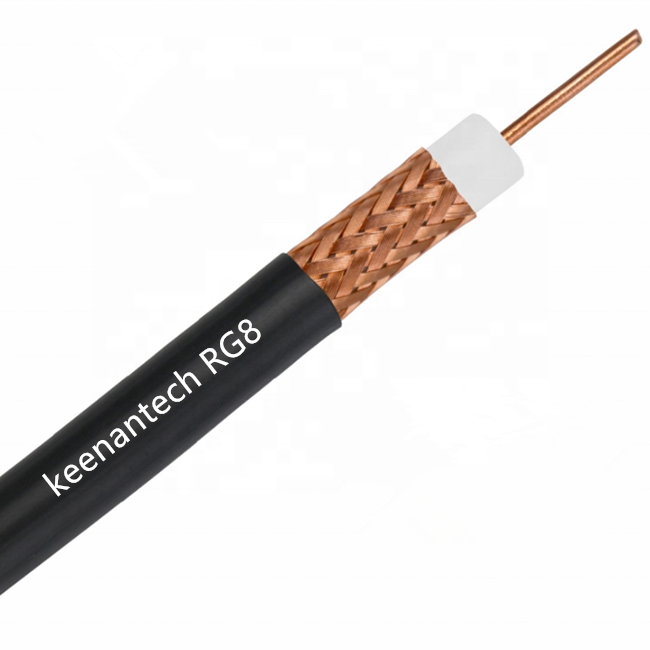

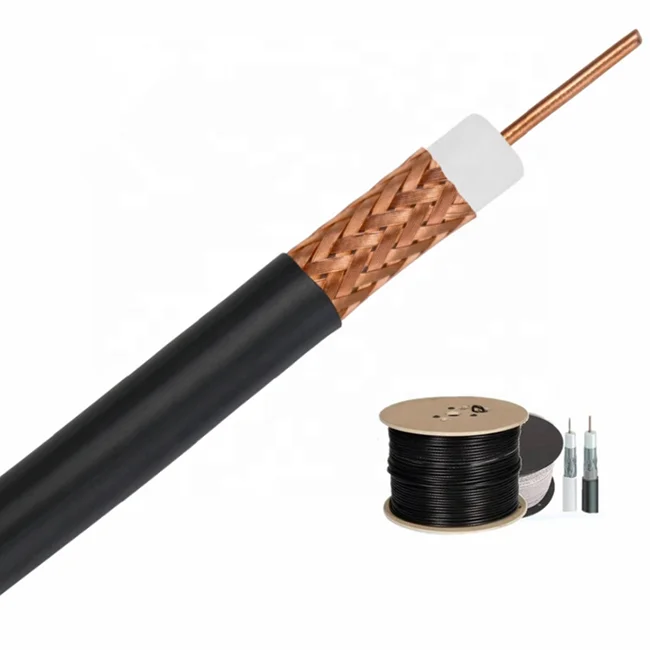

This 50 Ohm RG8 cable is a multipurpose MIL-C-17 coaxial cable with foam insulation. It has a good attenuation and shielding effectiveness.It has been widely applied to radio transmission,base radio antenna station and other communication systems.
Features
· 50 Ohm data signal transmission;
· The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
· Excellent performance in high frequency,VSWR stability;
· Similar to the FLMR400 coaxial cable;
· Customized cable color , winding and connector, meet your different requirements;
· Be in conformity with the European ROHS standard;
Assemblies & Application

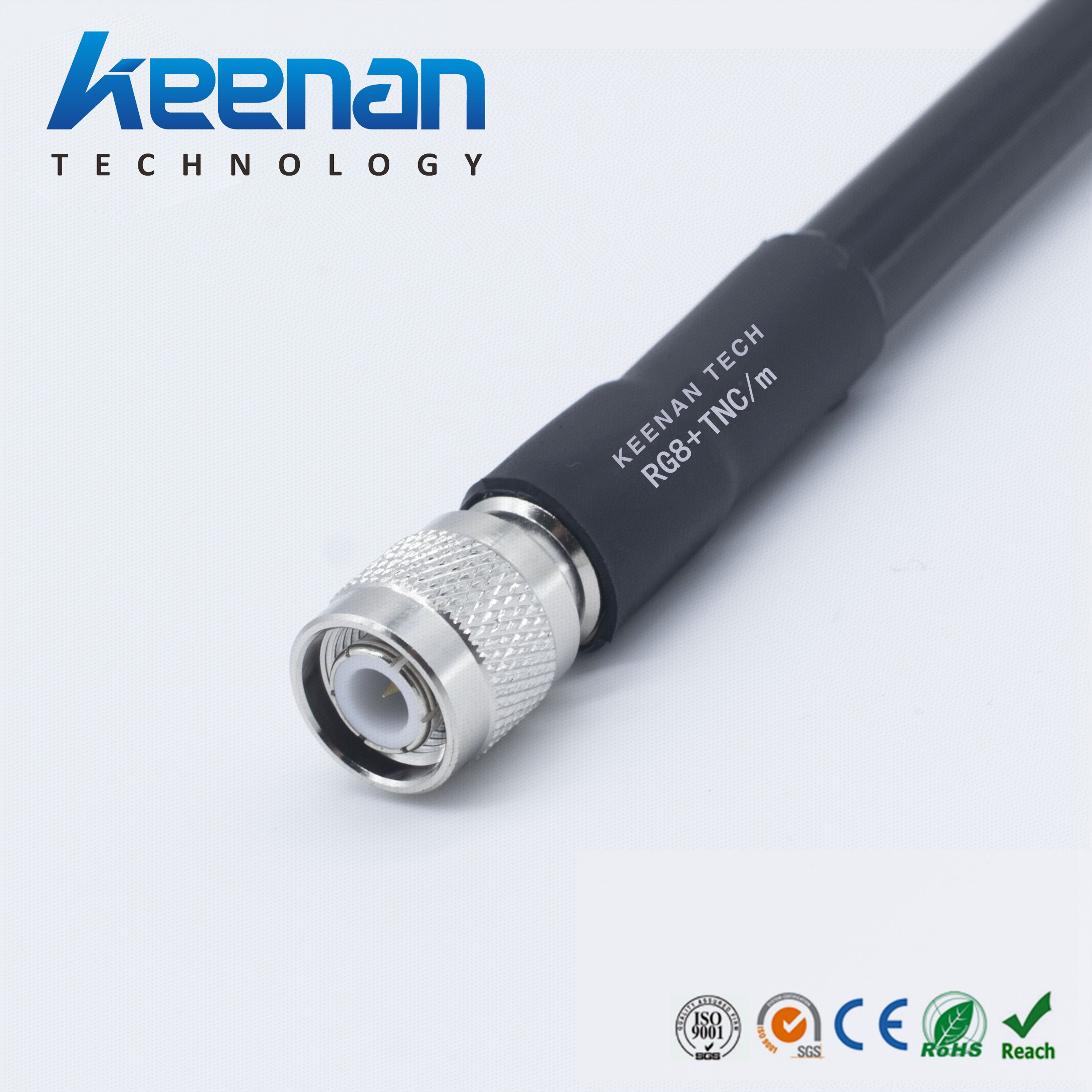

These 50 Ohm RG8 series coaxial cables can be equipped with varied connectors,as for SMA,N,BNC,TNCconnectors.These versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.

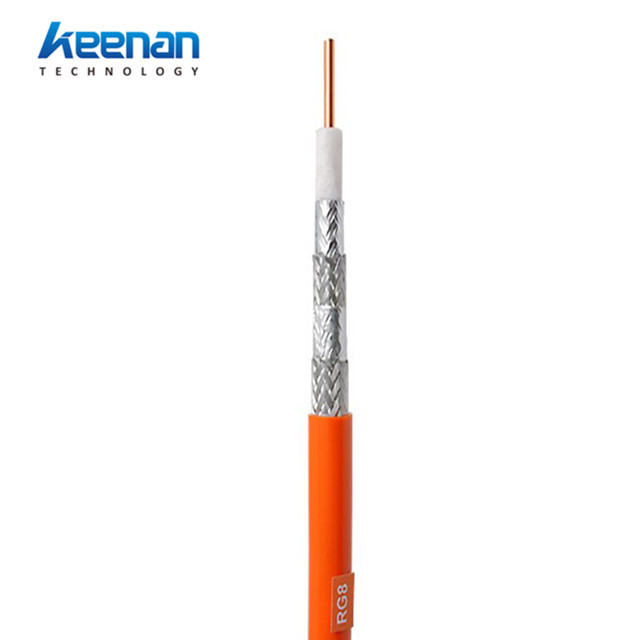

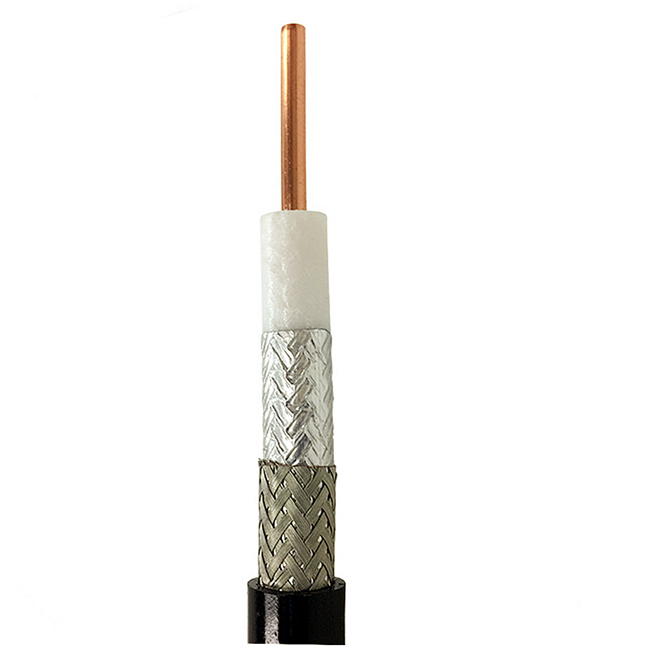

Construction
|
Item |
Material |
Diameter(mm) |
Remarks |
|
Inner Conductor Dielectric First Shield Second Shield Jacket |
Bare Copper Foam PE Bonded Aluminum Foil TC Wire Braid PVC/PE/LSZH |
2.74 7.24 7.39 8.13 10.29 |
Per customer’s requirements: Out conductor could be 128,144 or 168 TC wires braiding; Jacket could be PVC,PE or LSZH; |
Electrical Characteristics
|
Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Return Loss Screening Effectiveness(db) Voltage With Stand Installation Temp(℃) Operating Temp(℃) |
50±3 78.4 85.0 ≥18 ≥90 2000.0 -30 to +70 -30 to +70 |
Attenuation (@200C)
|
Frequency(MHz) |
Max Attenuation(dB/100m) |
|
150 220 450 900 1500 1800 2000 2500 |
5.0 6.1 8.9 12.8 16.8 18.6 19.6 22.2 |
