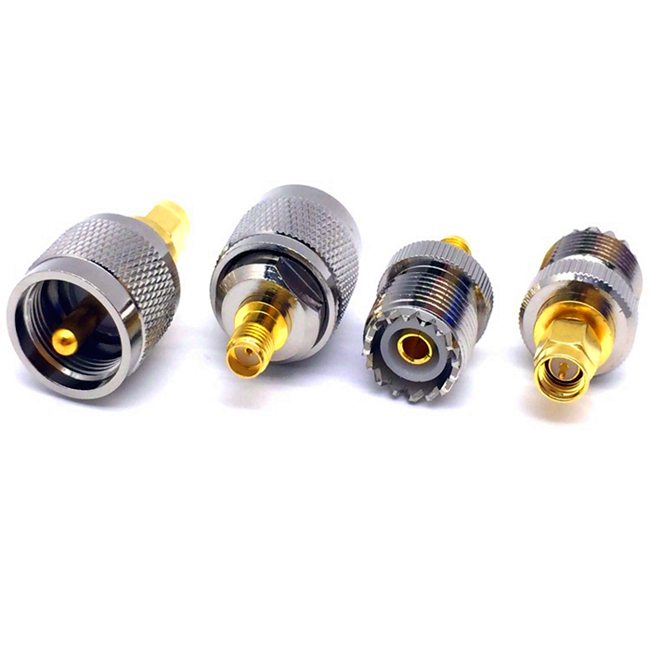

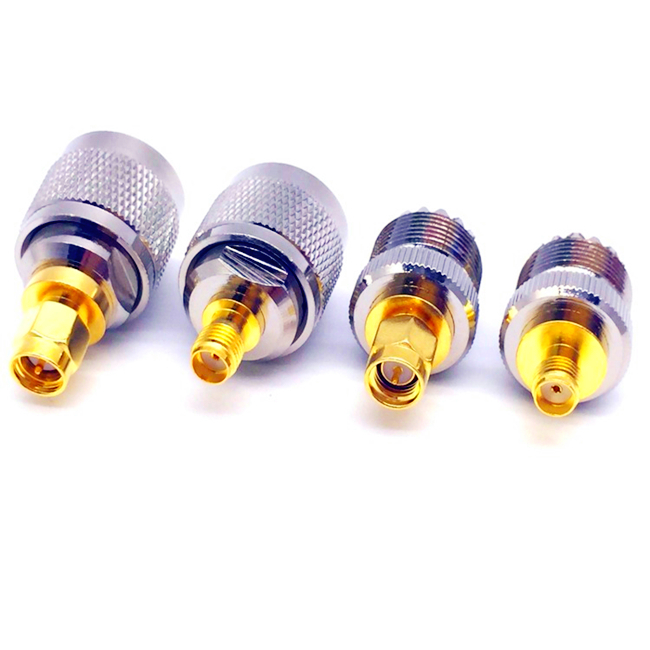

UHF connectors are sometimes also called Ampheno coaxial connectors. They were designed by Ampheno's designers in the 1930s and used as RF connectors in the radio industry. UHF connectors were originally intended to be video connectors for radar equipment, but later were used in various RF applications. The plug can be called a PL259 coaxial connector, while the socket can be called an SO239 connector. These are their original military part numbers.

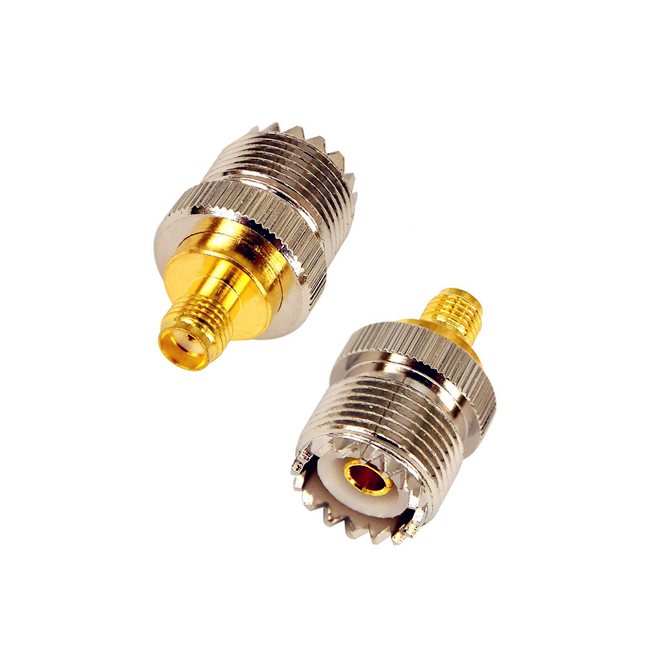

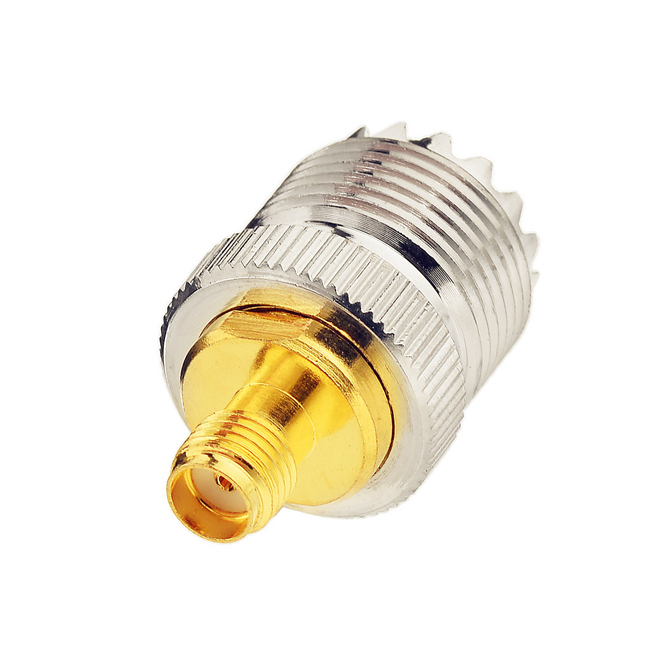

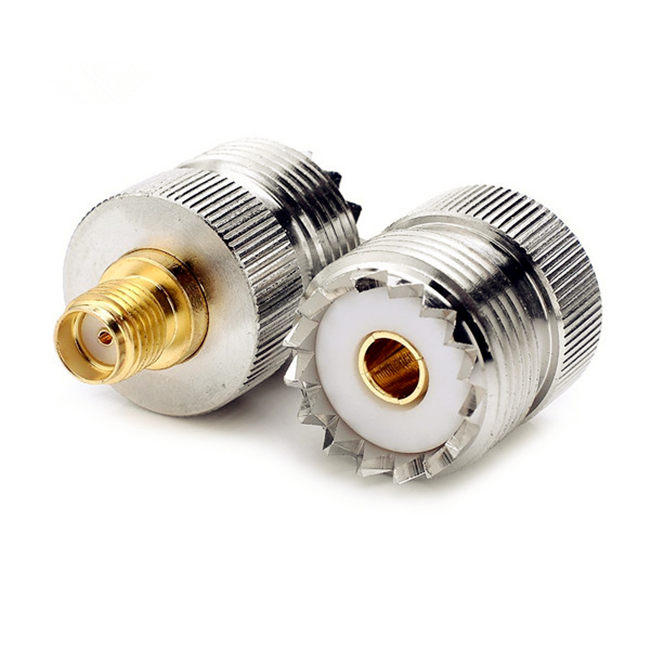

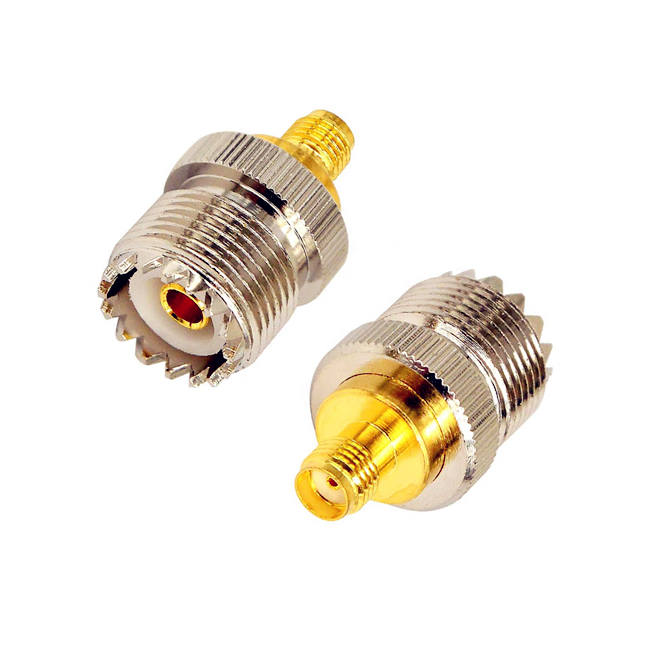

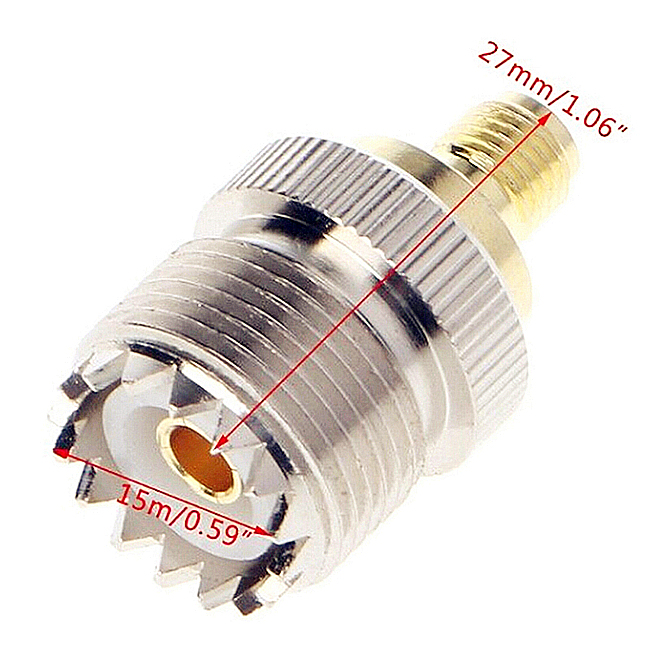

Antenna Adapter SMA Female To UHF Female SO239 Connector
Overview
RF coaxial adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.
|
Temperature range |
-40~+85°C |
|
Vibration |
100m/s2 (10~500Hz) |
|
Impedance |
50 OHM |
|
Frequency Range |
DC – 6GHz |
|
Working Voltage |
2700V max |
|
Break-down Voltage |
4000V rms @ sea level |
|
Contact resistance |
≤0.4 OHM @ inner contact |
|
Average power |
3KW max |
|
Insulation resistance |
≥10000M OHM |
|
VSWR |
≤ 1.10 |
|
Durability (mating) |
≥500 (cycles) |
Material & Plating
|
Body |
Brass |
Nickel plated / Alloy plated |
|
Inner Pin |
Brass |
Gold plated |
|
Resilient Contact |
Beryllium Copper |
Gold plated |
|
Socket Contact |
Beryllium or tin bronze |
Gold plated |
|
Insulator |
PTFE |
|
|
Crimp Ferrule |
Copper alloy |
Nickel / Gold plated |
|
O-ring sealing |
Silicone Rubber |
|
