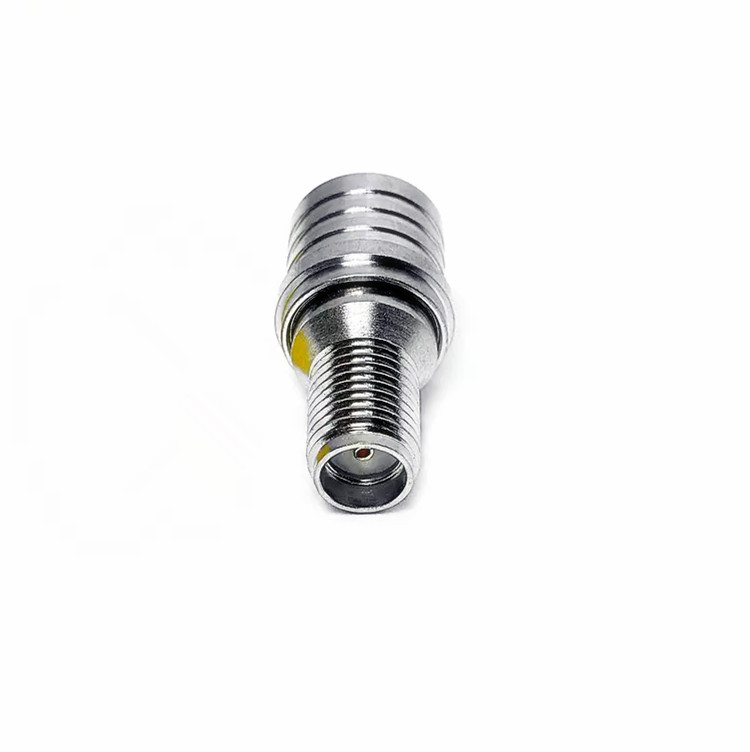

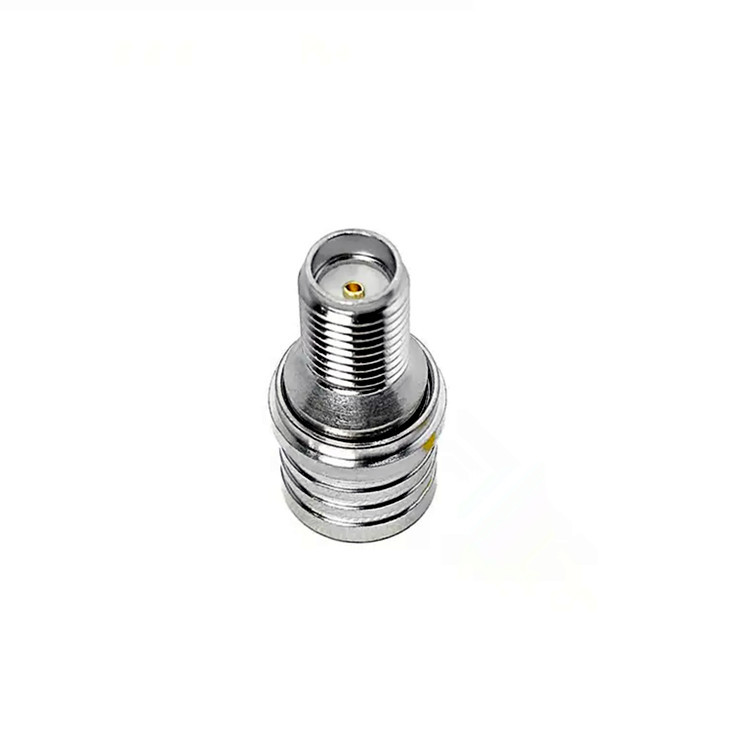

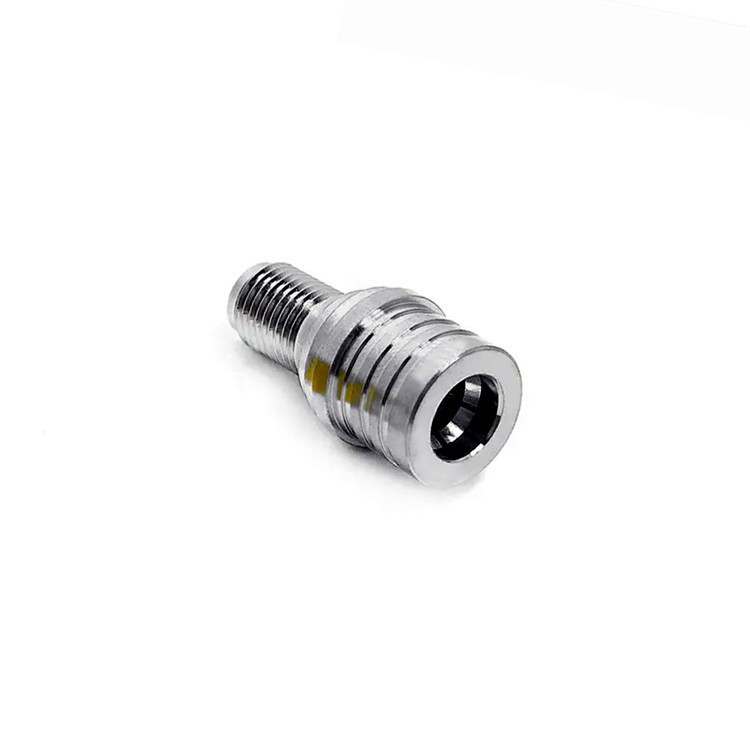

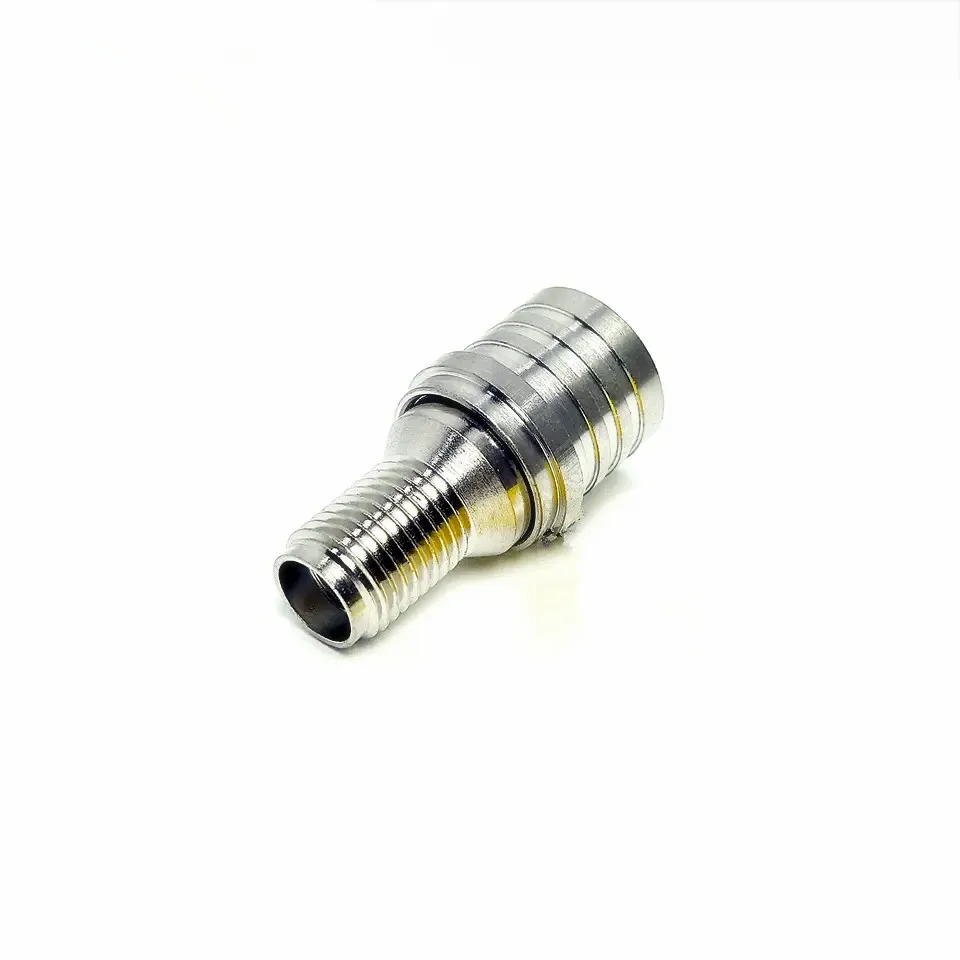

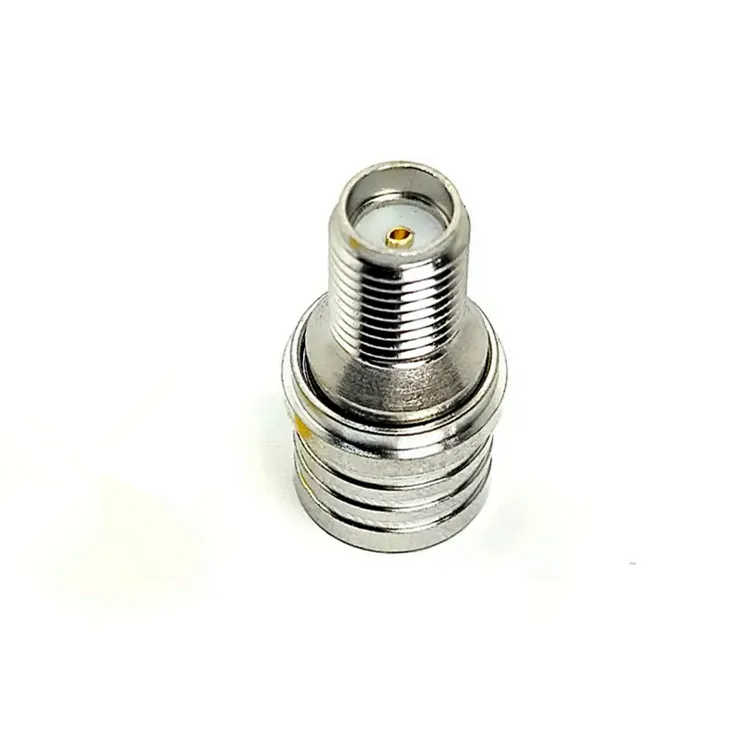

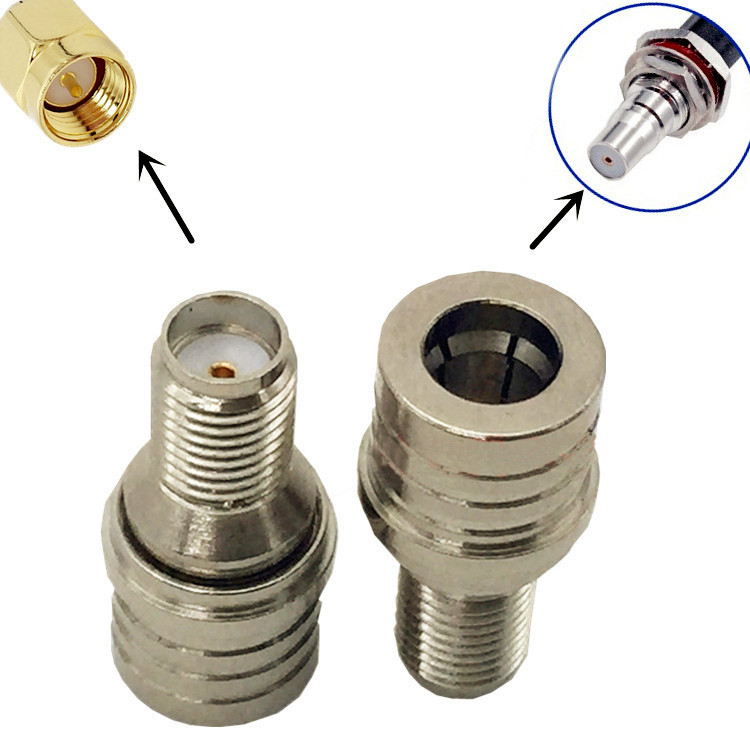

Antenna Adapter SMA Female To QMA Male RF Coaxial Connector Adapter
Overview
RF QMA style connectors are frequently referred to as a quick-connect style. They were designed with the goal of being a replacement for SMA and N style connectors, which have threaded connections and for proper connection require a torque wrench. With the quick-connect design of the QMA the snap fastening results in more rapid connections. The QMA connector design also provides for 360° cable rotation which results in easier cable routing after the installation. QMA connectors are often used in cellular applications.
|
Brand Name
|
KEENAN
|
|
Model Number
|
QMA/SMA-JK
|
|
Impedance
|
50 Ω
|
|
Frequency range
|
DC-6GHz
|
|
Center conductor withdrawal force
|
≥ 0.25 N
|
|
Plating
|
Nickel plated
|
|
Center Contact Plating
|
Silver
|
|
VSWR
|
Straight: 1.1 max., R/A: 1.2 max.
|
|
Durability
|
500 Time
|
|
Applications:
|
1. Antennas
2. Base Stations 3. PCMCIA Cards 4. GPS 5. Telecom |
