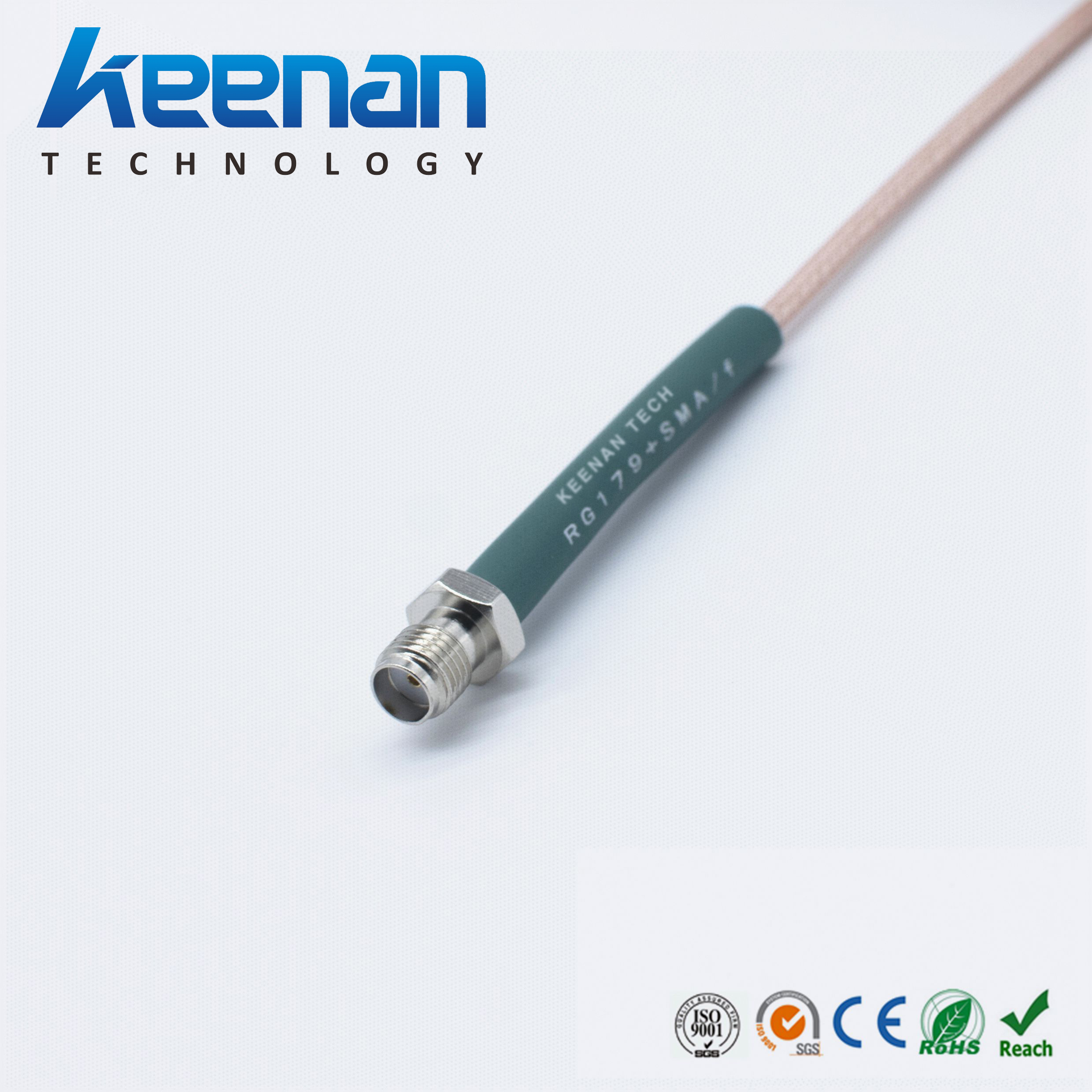

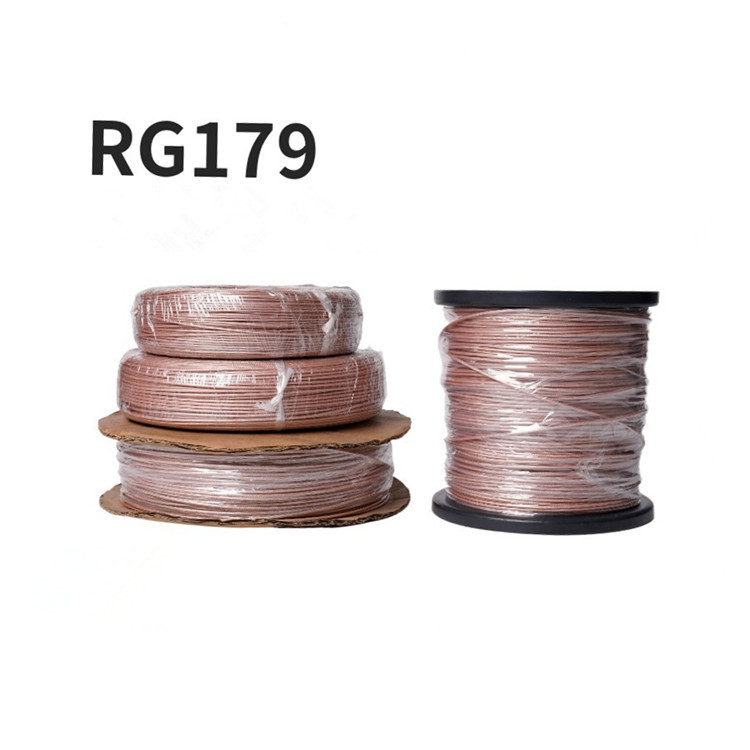

75ohm RG179 SDI Cable Video Cable RF Coaxial Cable
Overview
This 75 Ohm RG179 coaxial cable has small outer diameter and can be fixed kinds of connectors. It can work for a long time in a 200 degree temperature environment.Its versatile cable assemblies with various lengths have been widely used for tight fit applications.
Features
75 Ohm data signal transmission;
The inner conductor could be stranded or solid;
Special insulation materials,providing good electrical property and welding performance;
Small diameter is ideal for tight fit applications;
Customized cable color , winding and connector, meet your different requirements;
RoHS compliant;

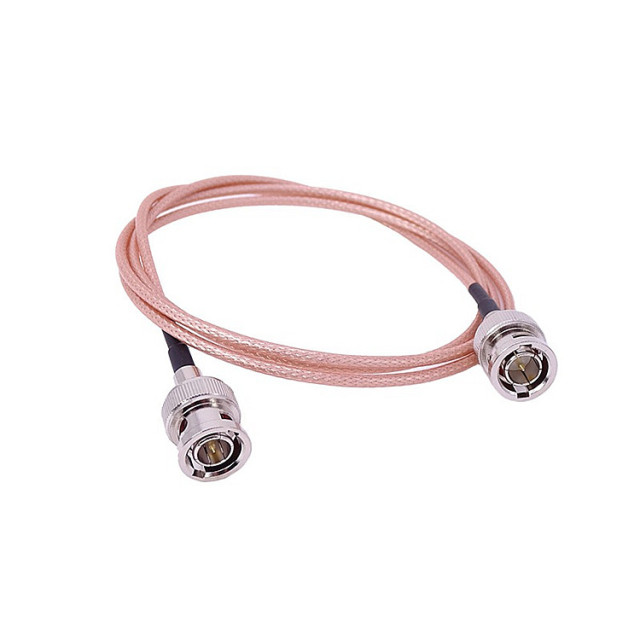

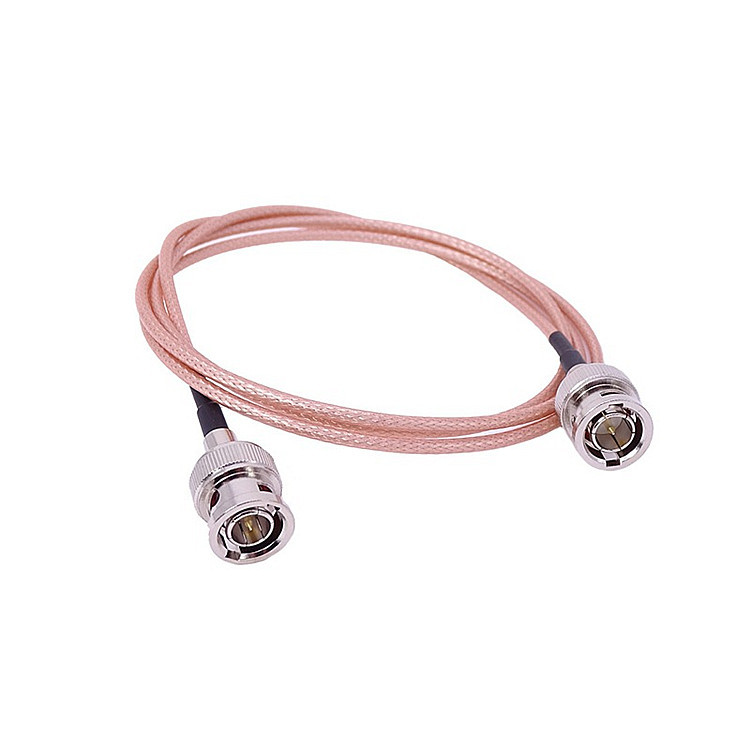

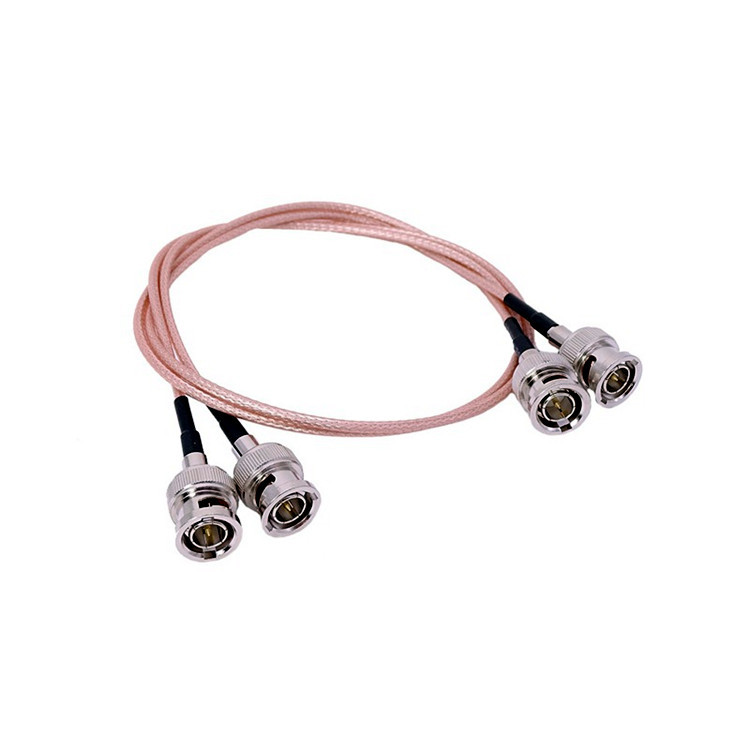

Assemblies & Application

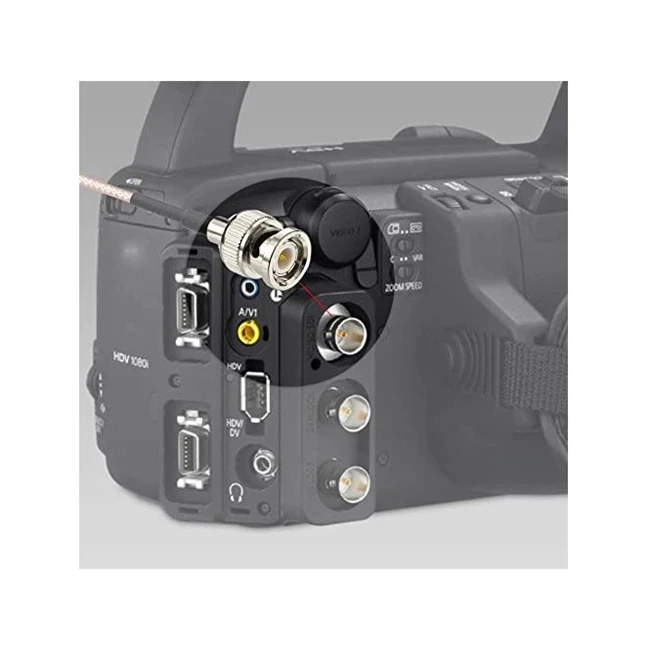

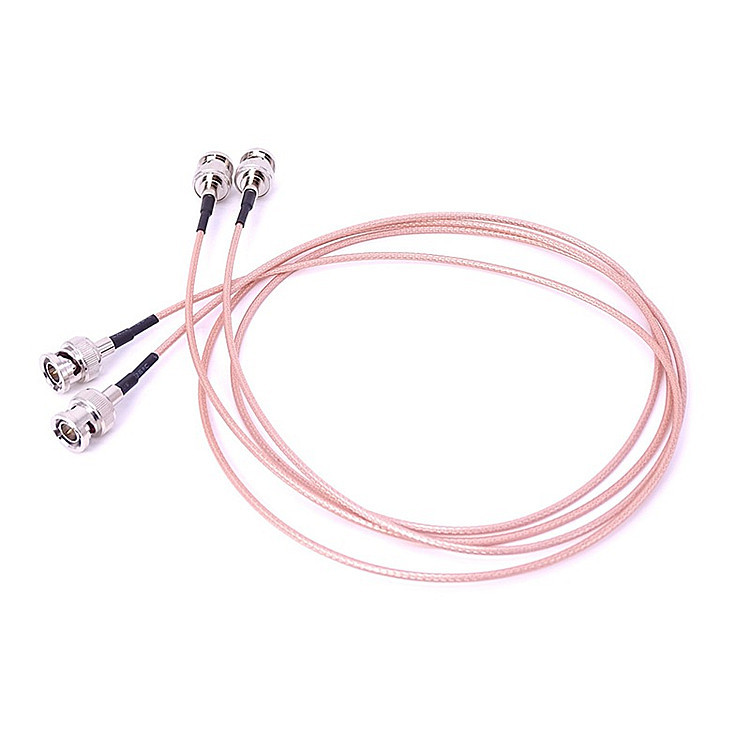

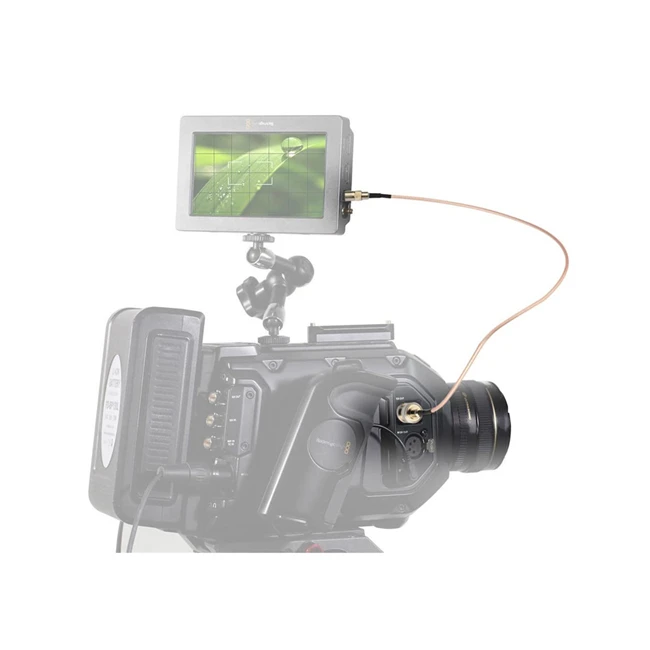

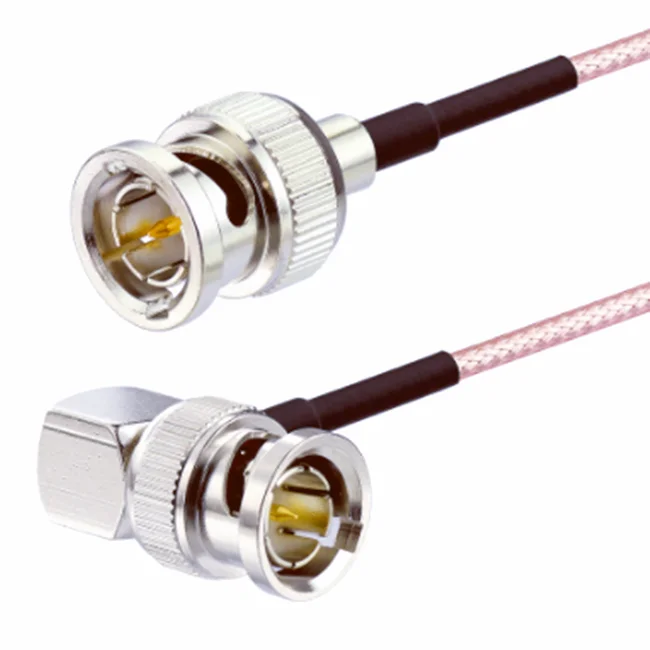

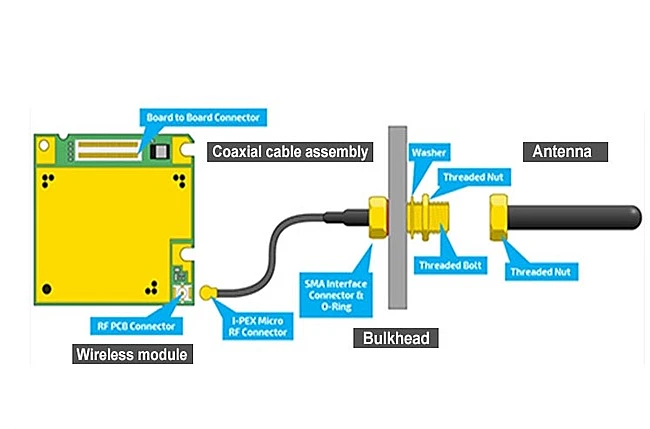

This 75 Ohm RG179 coaxial cable can be equipped with varied connectors,such as N,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to GPS,BEIDOU,GSM and other communication systems.

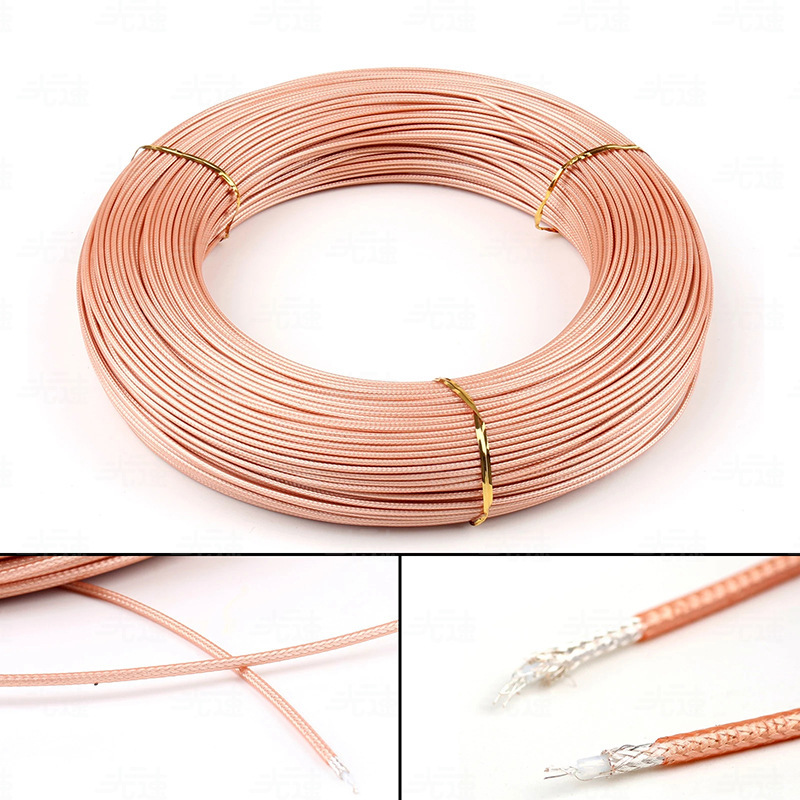

Construction
|
|
Material |
Diameter(mm) |
|
Inner Conductor Dielectric Shield Jacket |
Silver Plated Copper Clad Steel PTFE 95% Silver Plated Copper Braid FEP |
7/0.10 1.60 2.06 2.54 |
Electrical Characteristics
|
Capacitance (pF/m) Impedance (Ω) Velocity of Propagation (%) Conductor DCR (Ohm/km) Outer Shield DCR (Ohm/km) Max Operating Frequency (MHz) Max Operating Voltage(VRMS) Operating Temperature(0C) |
64.0 75.0 70.0 800.5 27.9 3000.0 1200.0 -55 to +200 |
Attenuation [@68oF(20oC)]
|
Frequency(MHz) |
Max Attenuation (dB/100m) |
|
100 200 400 700 900 1000 |
32.8 41.0 52.5 64.6 73.2 78.7 |
More Ideas
1) If require conventional construction and materials, please click RG179;
2) If require lightweight and lower price,you can choose RG179-FEP or 1.5C-XLPE;
3) For more RG179 assemblies,you can choose RG179 ASSEMBLIES;
4) Any other requirements or queries, please click CONTACT US.
