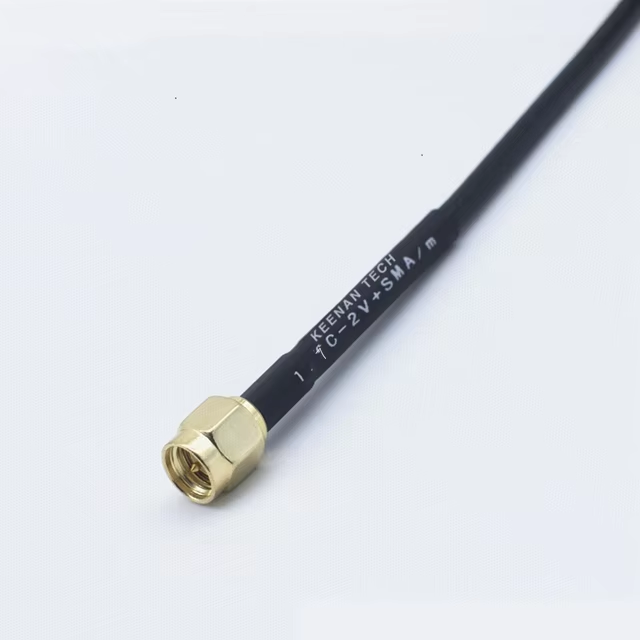

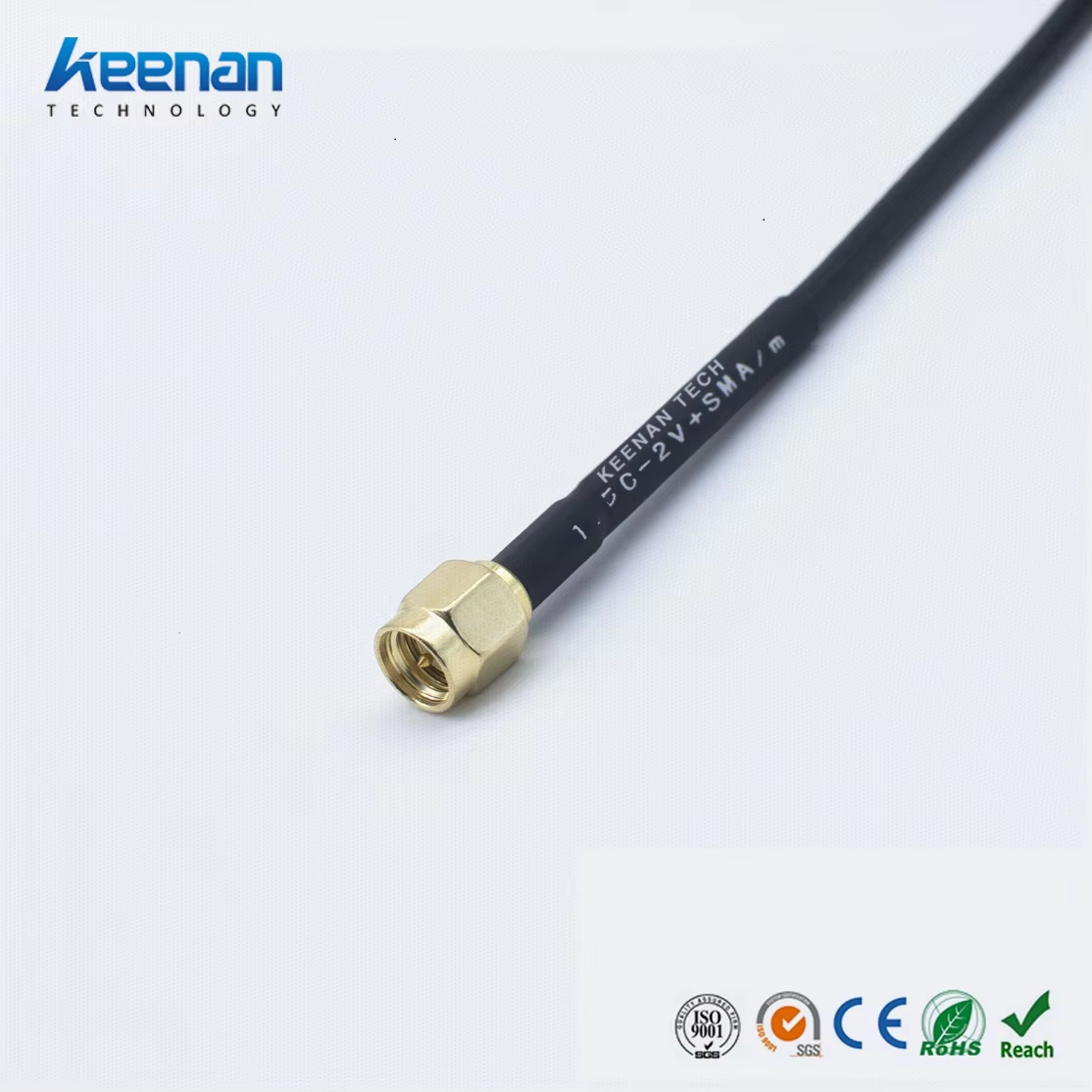

75Ohm data signal transmission 1.7C-2V coaxial cable
Overview
This 75 Ohm 1.7C-2V coaxial cable has small outer diameter and can be equipped with varied connectors. These versatile cable assemblies with various lengths have been widely used for tight fit applications.
Features
75 Ohm data signal transmission;
Special insulation materials,providing good electrical property and welding performance;
Small diameter is ideal for tight fit applications;
Common size cable can be easily terminated;
RoHS compliant;
Construction
|
|
Material |
Diameter(mm) |
Remarks
|
|
Inner Conductor Insulation Out conductor Jacket |
BC/CCS Solid PE BC wire Braid PVC/LSZH |
0.27 1.70 2.20 3.00 |
Per customer’s requirements: Out conductor could be 48,64,80 or 96 BC wires braiding; Jacket could be PVC or LSZH; |
Electrical Characteristics
|
Capacitance (pF/m) Impedance (Ω) Velocity of Propagation (%) Max Operating Frequency (MHz) Max Operating Voltage(VRMS) Inner Conductor Resistance (Ω/kM) Return Loss (dB) Operating Temperature(0C) |
69 75 67 1000 1000 -- 18 -30 to +105 |
Attenuation [@68oF (20oC)]
|
Frequency(MHz) |
Max Attenuation (dB/100m) |
|
30 200 500 1000 |
10.0 14.3 27.5 48.0 |
Assemblies & Application
This 75 Ohm 1.7C-2V coaxial cable can be fixed with kinds of connectors,such as F,TV,BNC,TNC
connectors.These versatile cable assemblies with various lengths have been widely applied to car radio and othercommunication systems.
More Ideas
1) If require conventional construction and materials, please choose 1.7C-2V;
2) For a better welding performance,please choose 1.7C-2V-TC;
3) If require to be used in high temperature environment at 105oC, please choose 1.7C-XLPE;
4) If require to be used in higher temperature environment, please choose RG179;
5) For more 1.5C-2V assemblies,please choose 1.7C-2V ASSEMBLIES;
6) Any other requirements or queries, please CONTACT US.
