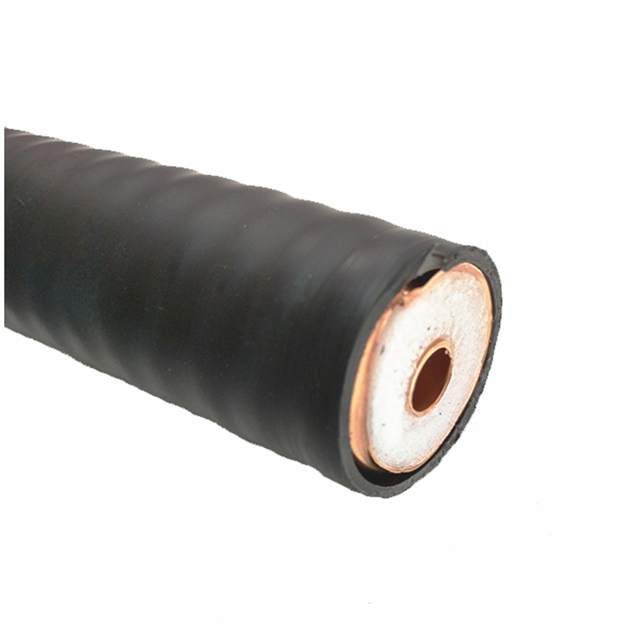

50Ohm RF Feeder Corrugated Tube Cable 1-1/4" Coaxial Cable
RF Feeder Cable 1-1/4”

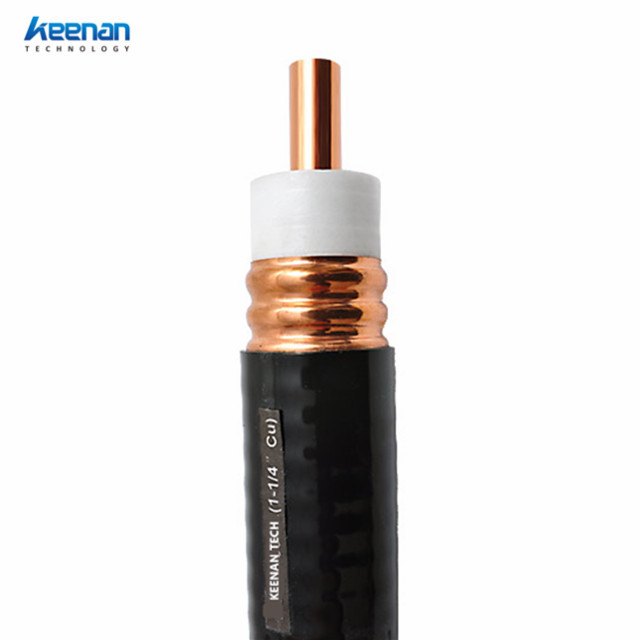

Construction
|
|
Material |
Diameter(mm) |
|
Inner Conductor Dielectric First Shield Jacket |
Copper Tube Foam PE Corrugated Bare Copper Tube PE or LSZH |
13.0 32.0 35.8 38.7 |
Electrical Characteristics
|
Nominal Capacitance (pF/m) Impedance (Ω) Velocity Ratio DC Resistance inner Conductor(Ω/KM) DC Resistance outer Conductor(Ω/KM) Operating Temperature Min. Bending Radius(Single) Min. Bending Radius(Repeated) |
76 50 88 0.78 0.66 -50℃ to +85℃ 70mm 200mm |

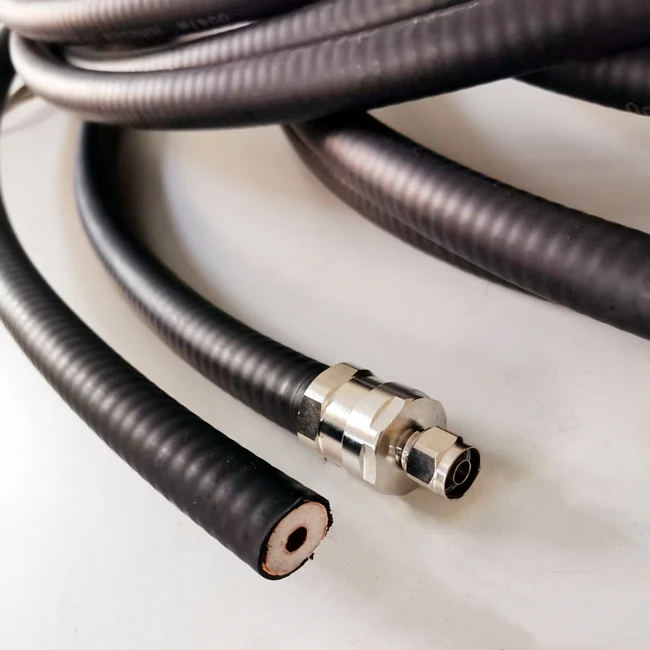

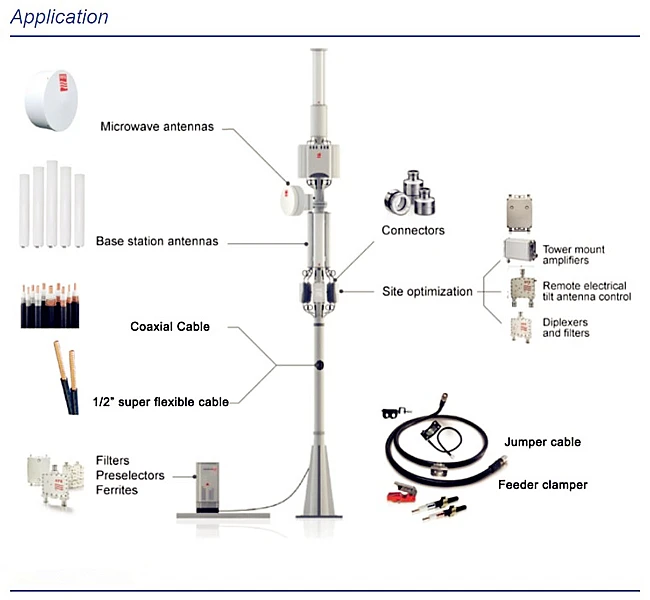

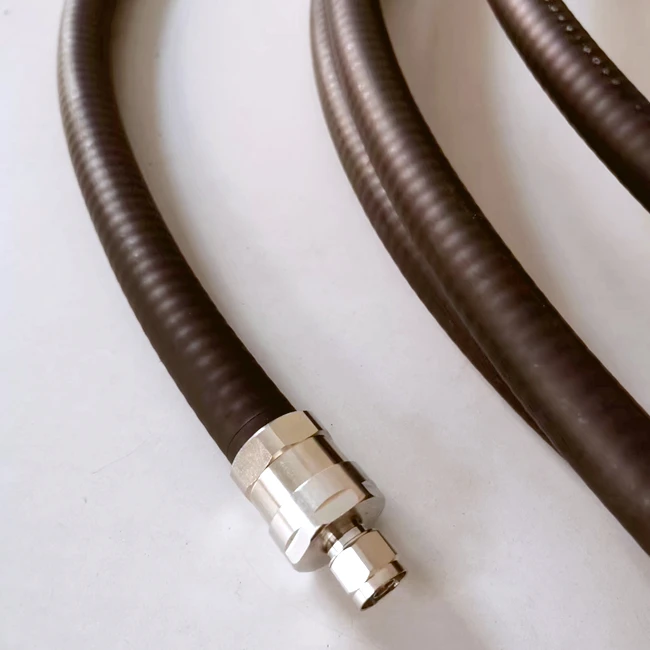

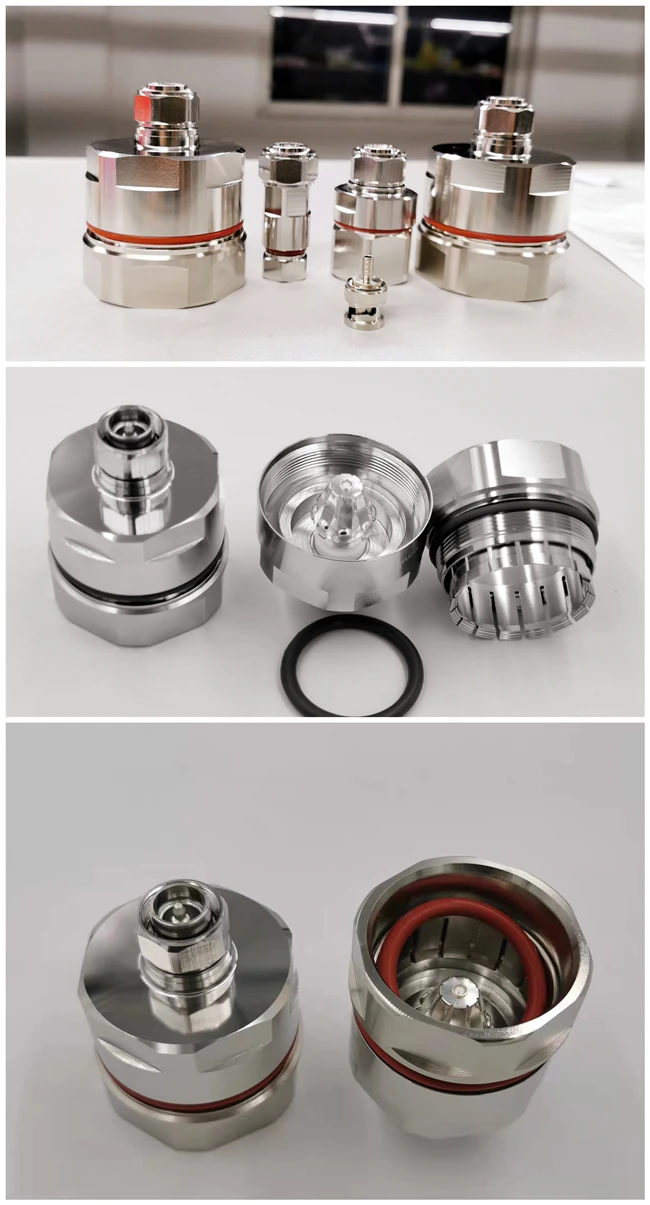

1-1/4" RF Feeder Cable / Corrugated Cable/ Andrew Heliax Cable 1/2" RF feeder cable, 50Ohm, also be named as half inch coaxial cable, has pretty good performances, wish loss, great attenuation and PIM. Its assemblies usually fixed with N type connectors. This 1/2" RF feeder cable and its assemblies are largely used on various antennas, cellphone/mobile phone signal boosters, repeaters. It's also suitable for GSM,CDMA ,PHS ,TD-SCDMA ,CDMA2000 and WCDMA and etc.
