50Ohm Radio Transmission Communication Station LMR600 Coaxial Cable
Overview

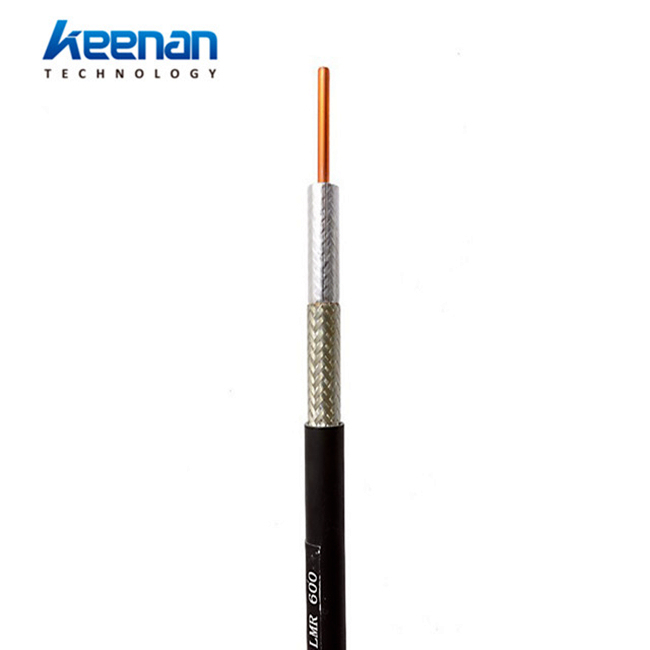

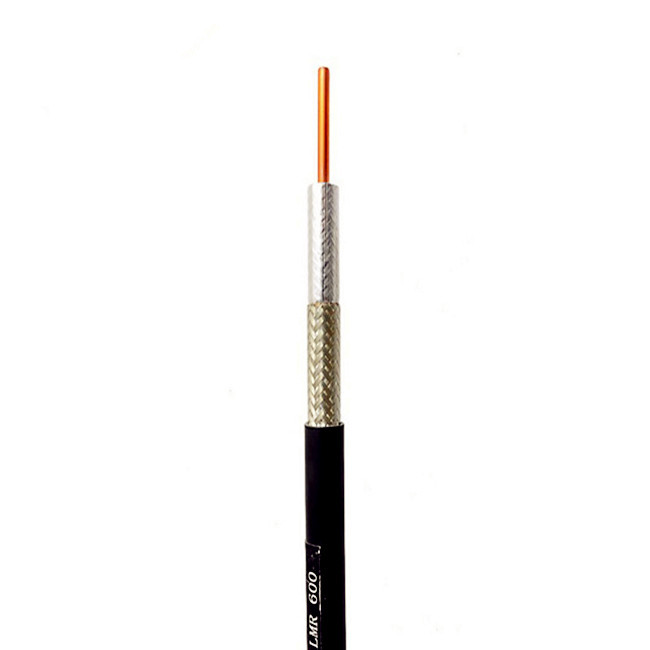

This is a coaxial cable with foam insulation. It has a good attenuation and shielding effectiveness.It has been widely applied to radio transmission,base radio antenna station and other communication systems.
Features
50 Ohm data signal transmission;
The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
Excellent performance in high frequency,VSWR stability;
Similar to the 12D-FB coaxial cable;
RoHS compliant;
Assemblies & Application

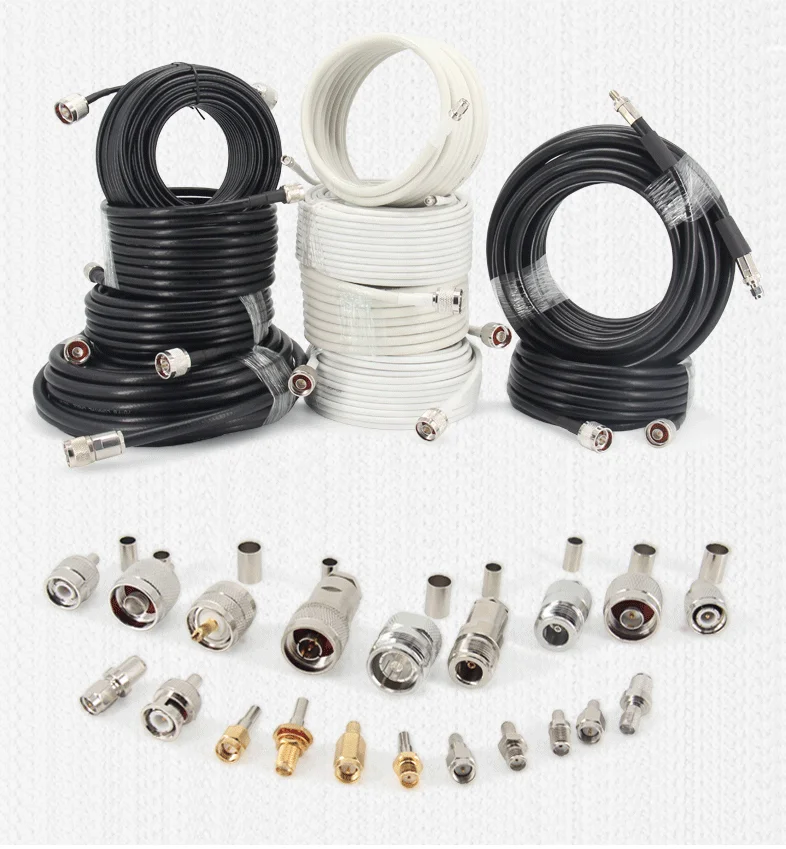

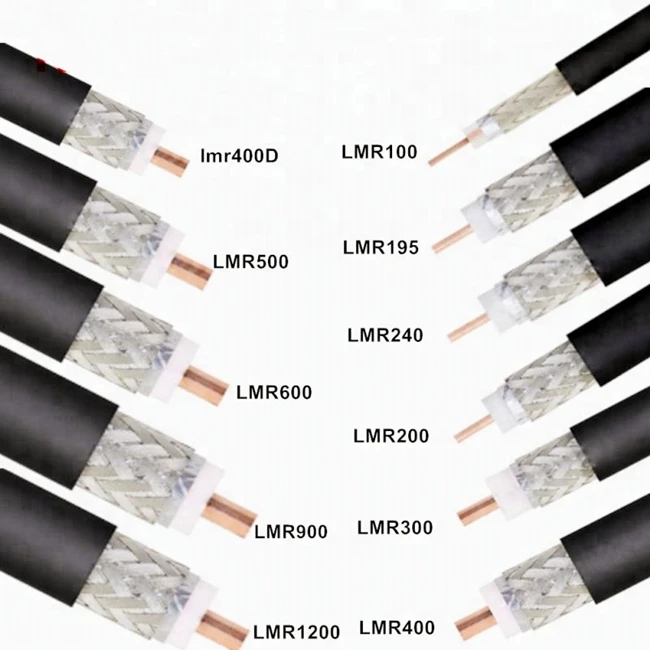

These 50 Ohm 600 series coaxial cables can be fixed kinds of connectors,such as SMA,N,BNC,TNC

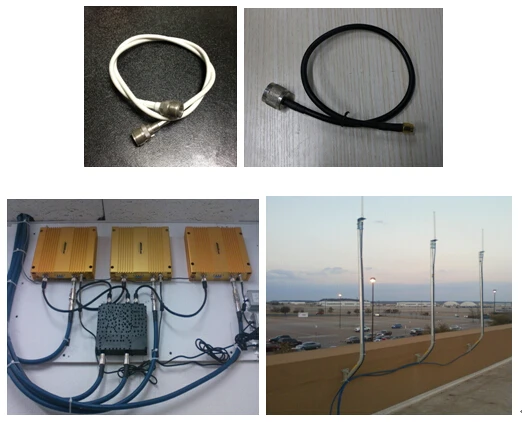

connectors.These versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.

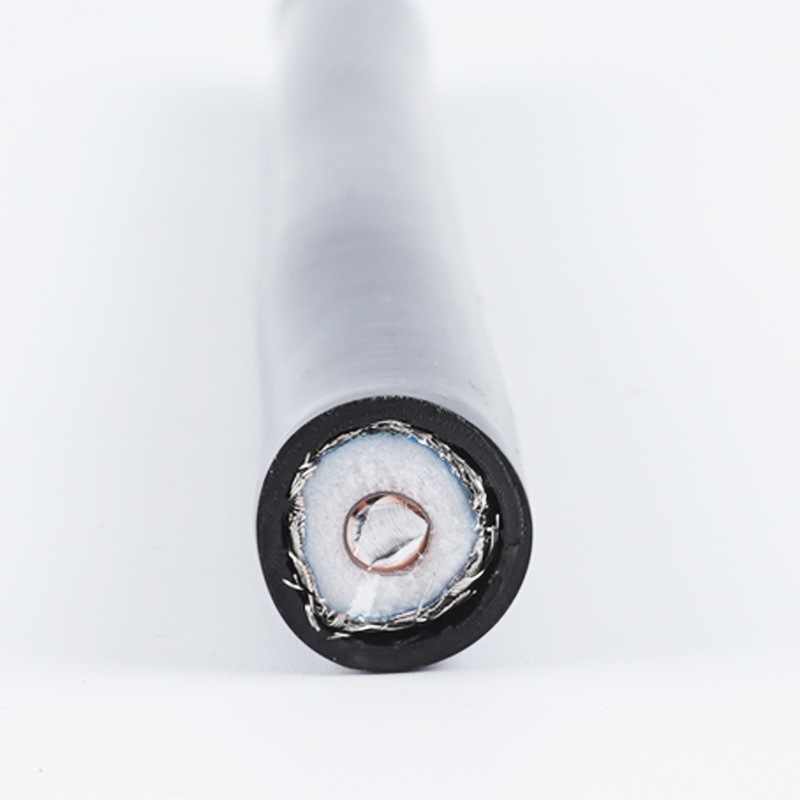

Construction
|
Item
|
Material
|
Diameter(mm)
|
Remarks |
|
Inner Conductor Dielectric First Shield Second Shield Jacket
|
Copper Clad Aluminum Foam PE Bonded Aluminum Foil TC Wire Braid PVC/PE/LSZH
|
4.47 11.56 11.71 12.45 14.99
|
Per customer’s requirements: Out conductor could be 144,168,192 or 216 TC wires braiding; Jacket could be PVC,PE or LSZH; |
Electrical Characteristics
|
Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Return Loss
Screening Effectiveness(db)
Voltage With Stand
Spark Tdsk(VRMS)
Installation Temp(℃)
Operating Temp(℃)
|
50±3
76.6
87.0
≥20
≥90
4000.0
8000.0
-30 to +70
-30 to +70
|
Attenuation (@200C)
|
Frequency(MHz)
|
Max Attenuation(dB/100m)
|
|
150
220
450
900
1500
1800
2000
|
4.0
4.9
7.1
10.3
13.6
15.0
15.9 |
