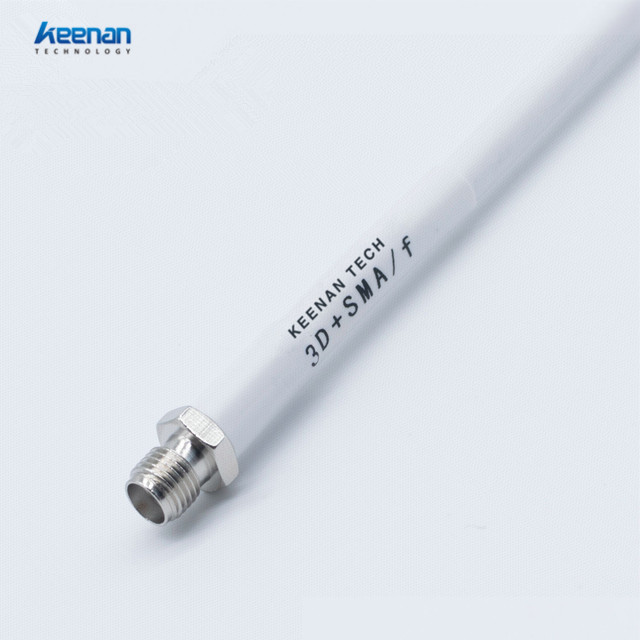

50Ohm Phone Signal Amplifier 3D-FB Low Loss Coaxial Cable for Communication
This is a JIS foam coaxial cable with solid inner conductor. It has a good attenuation and shielding effectiveness.As a substitute for RG58 coaxial cable,it has been widely applied to radio transmission,base radio antenna station and other communication systems.
• 50 Ohm data signal transmission;
• The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
• Excellent performance in high frequency,VSWR stability;
• Similar to LMR200 coaxial cable
• Customized cable color , winding and connector, meet your different requirements;
• REACH & RoHS compliant;

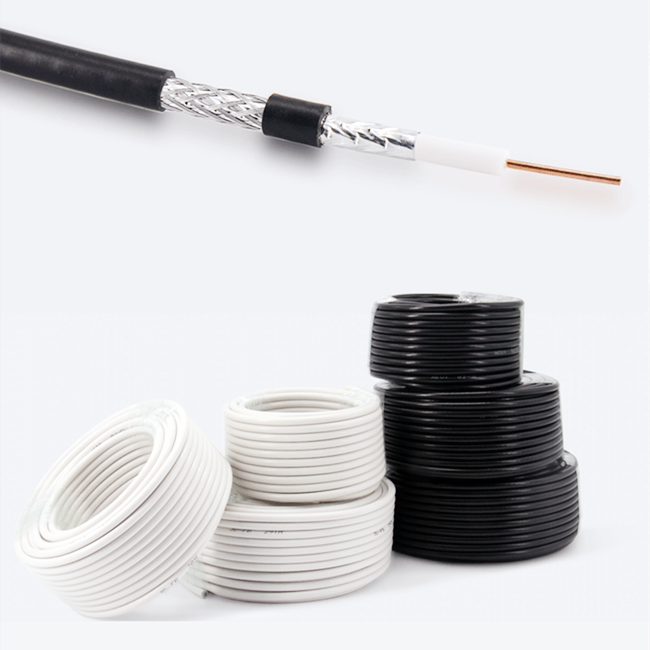

Construction
|
Item
|
Material
|
Diameter(mm)
|
Remarks |
|
Inner Conductor
Insulation
First Shield
Second Shield
Jacket
|
Bare Copper
Foam PE
Bonded Aluminum Foil
TC Wire Braid
PVC/PE/LSZH
|
1.00
3.00
3.10
3.60
5.00
|
Per customer’s requirements:
The second shield could be 64,80,96 or 112 TC wires braiding;
Jacket could be PVC,PE or LSZH; |
Electrical Characteristics
|
Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Dielectric strength(kV)
V.S.W.R
Return Loss
Inner Conductor Resistance (Ω/kM)
Screening Effectiveness(db)
Min. Bending Radius (mm)
Operating Temperature(0C)
|
50±3
82±2
81.0
1.6
≤1.2 (50----3000MHz)
≥20 (50----3000MHz)
22
≥75
27.0
-25 to +70
|
Attenuation (@200C)
|
Frequency(MHz)
|
Max Attenuation(dB/100m)
|
|
900
1200
1500
1800
2000
2200
2500
|
31.8
37.2
41.5
45.6
48.2
50.6
54.1 |

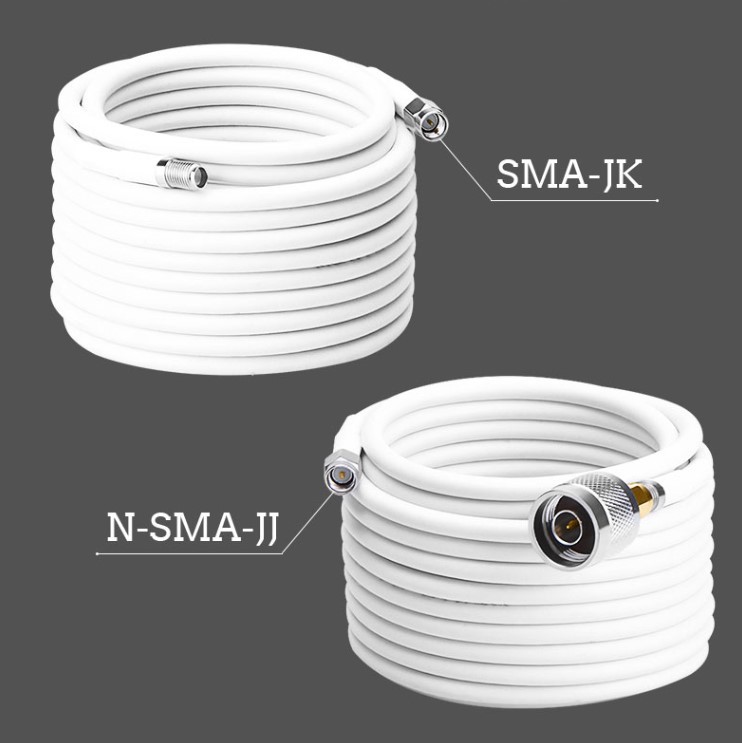

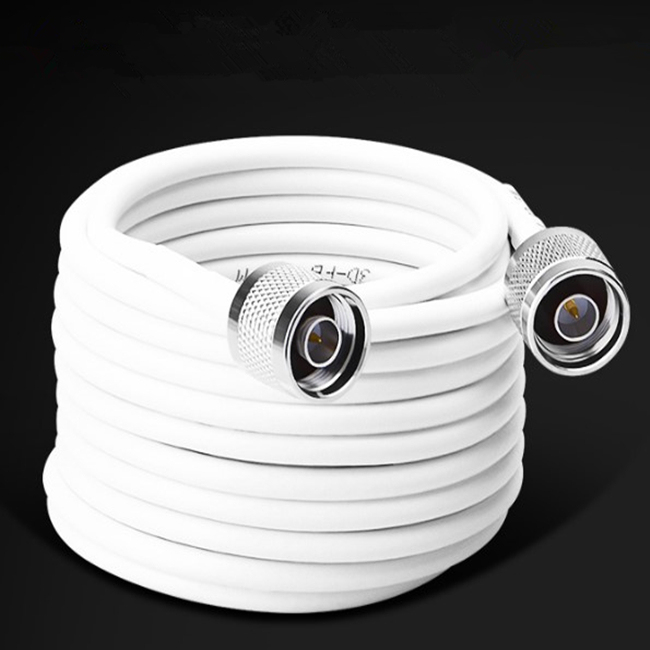

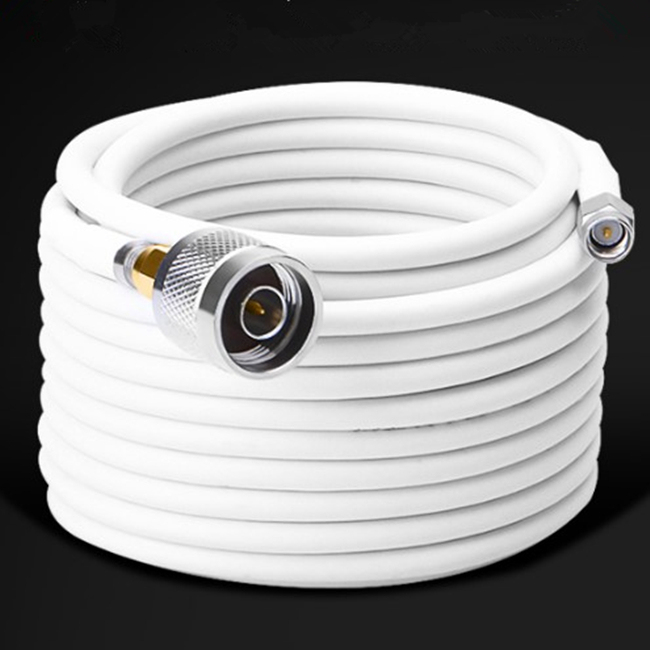

These 50 Ohm 3D-FB coaxial cables can be fixed kinds of connectors,such as SMA,N,BNC,TNC connectors.As a substitute for RG58 coaxial cable, these versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.
