50Ohm Low Loss RG316 RG178 RG179 RG142 RG400 Coaxial Cable with With Certification
Overview

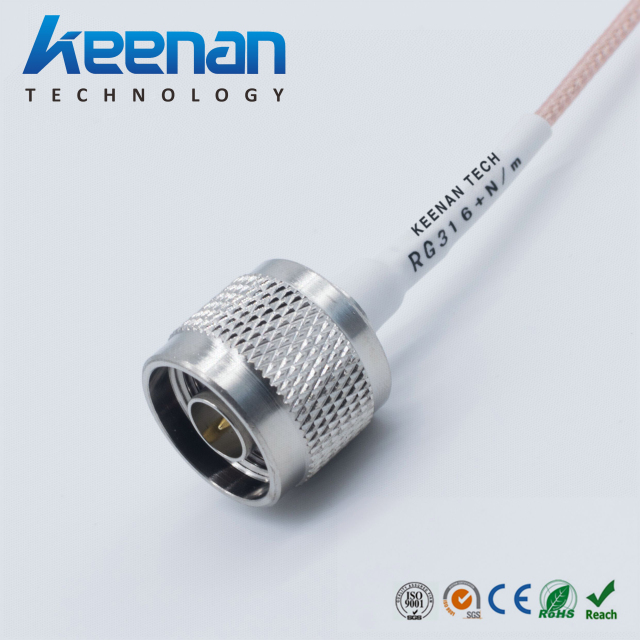

This 50 Ohm RG316 coaxial cable has small outer diameter and can be fixed kinds of connectors. It can work for a long time in a 200 degree temperature environment.Its versatile cable assemblies with various lengths have been widely used for tight fit applications.
Features
50 Ohm data signal transmission;
The inner conductor could be stranded or solid;
Special insulation materials,providing good electrical property and welding performance;
Small diameter is ideal for tight fit applications;
Customized cable color , winding and connector, meet your different requirements;
RoHS compliant;

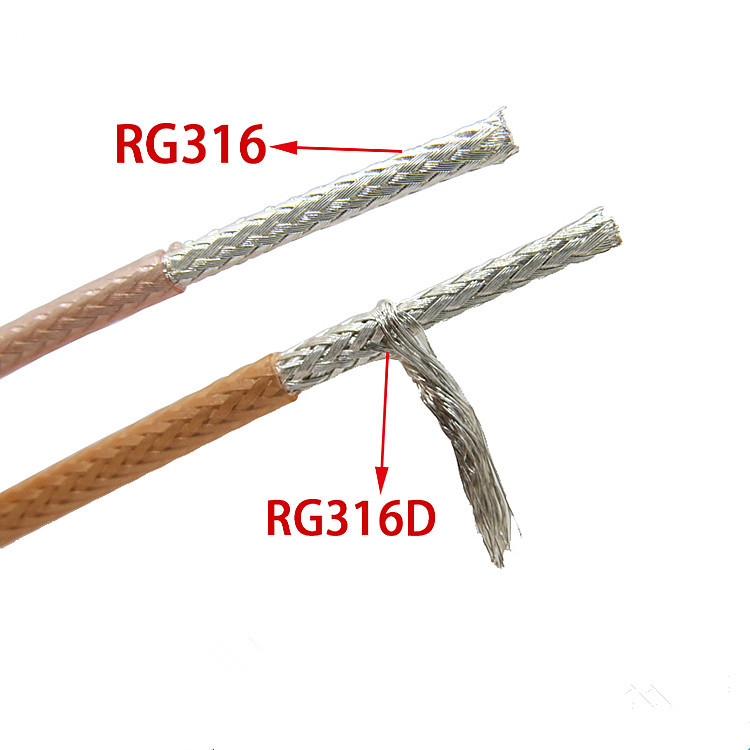

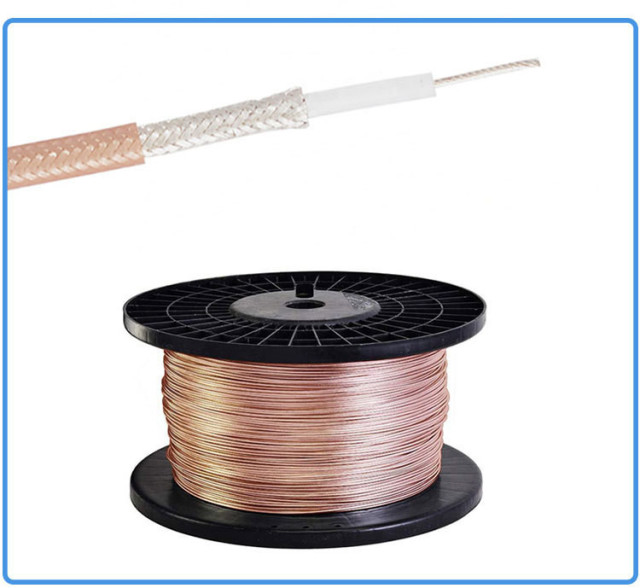

Construction
|
|
Material |
Diameter(mm) |
|
Inner Conductor Dielectric Shield Jacket |

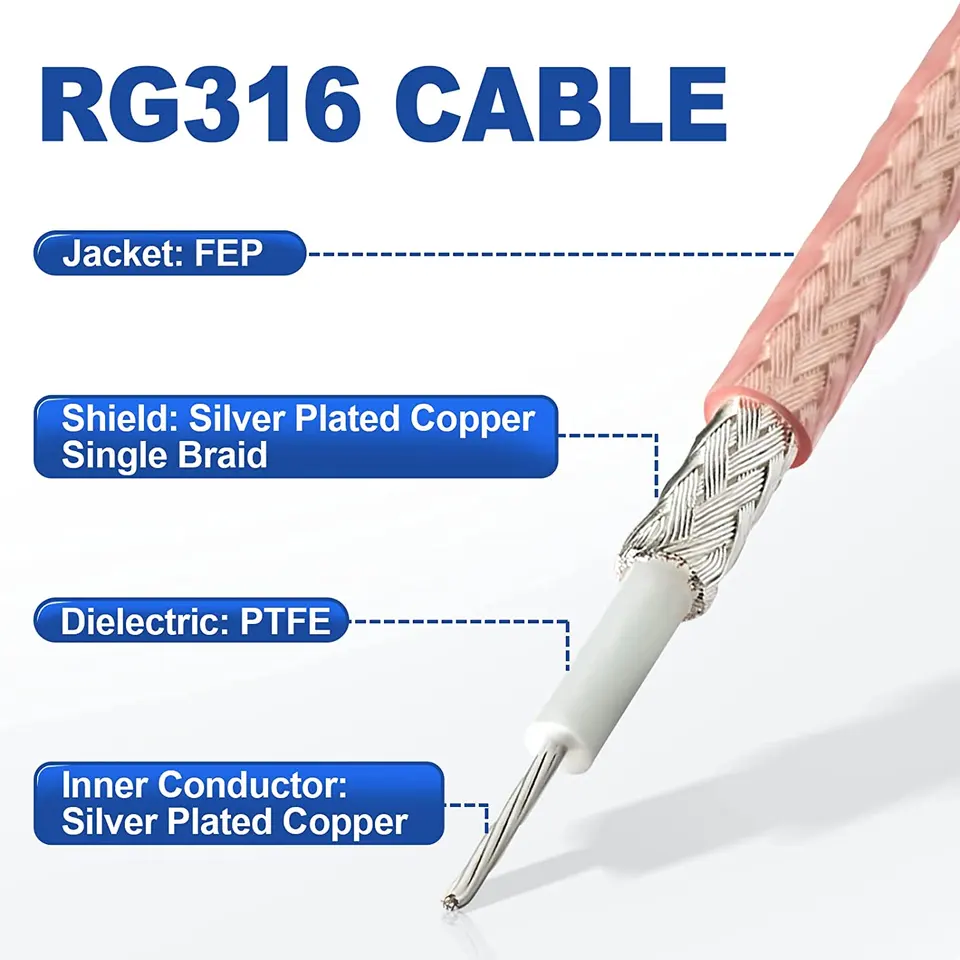

Silver Plated Copper Clad Steel PTFE 95% Silver Plated Copper Braid FEP |

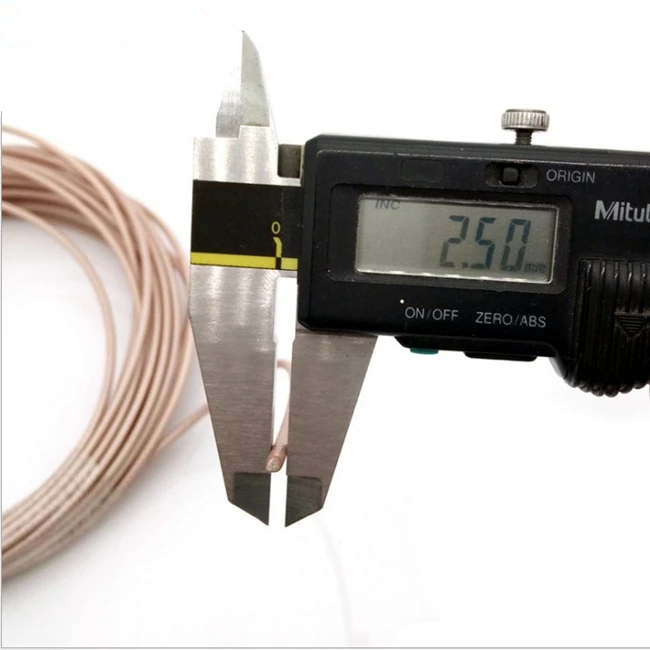

7/0.17 1.50 1.98 2.49 |
Electrical Characteristics
|
Capacitance (pF/m) Impedance (Ω) Velocity of Propagation (%) Conductor DCR (Ohm/km) Outer Shield DCR (Ohm/km) Max Operating Frequency (MHz) Max Operating Voltage(VRMS) Operating Temperature(0C) |
95.0 50.0 70.0 277.2 20.0 3000.0 1200.0 -55 to +200 |
Attenuation [@68oF(20oC)]
|
Frequency(MHz) |
Max Attenuation (dB/100m) |
|
100 200 400 700 900 1000 3000 |
27.2 36.1 54.8 74.8 86.3 90.2 155.2 |
Assemblies & Application

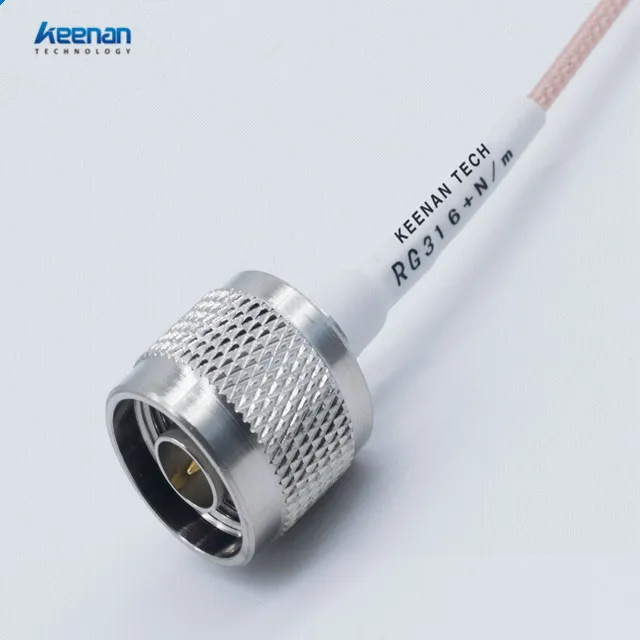

This 50 Ohm RG316 coaxial cable can be fixed kinds of connectors,such as SMA,FRAKA,BNC,MCX
connectors.These versatile cable assemblies with various lengths have been widely applied to GPS,BEIDOU,GSM and other communication systems.
