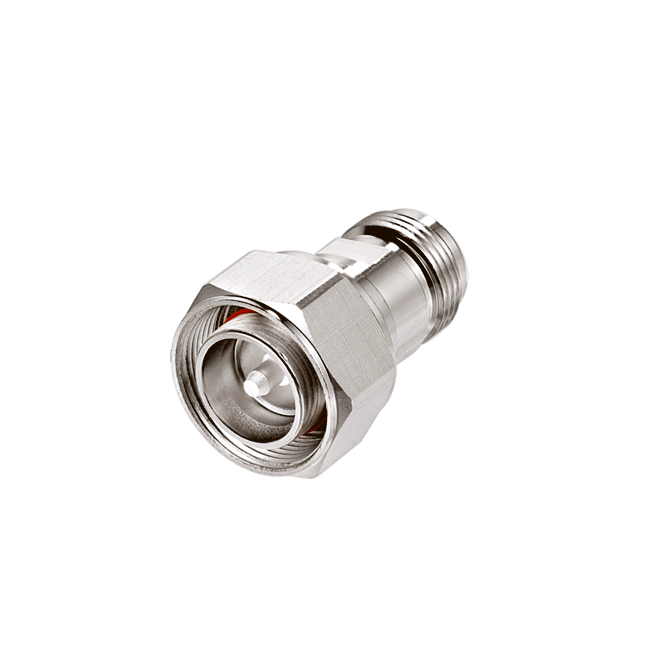

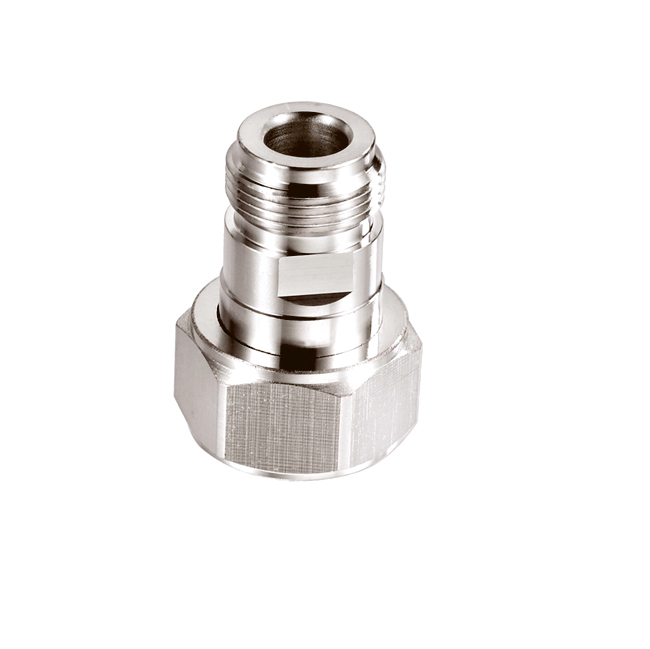

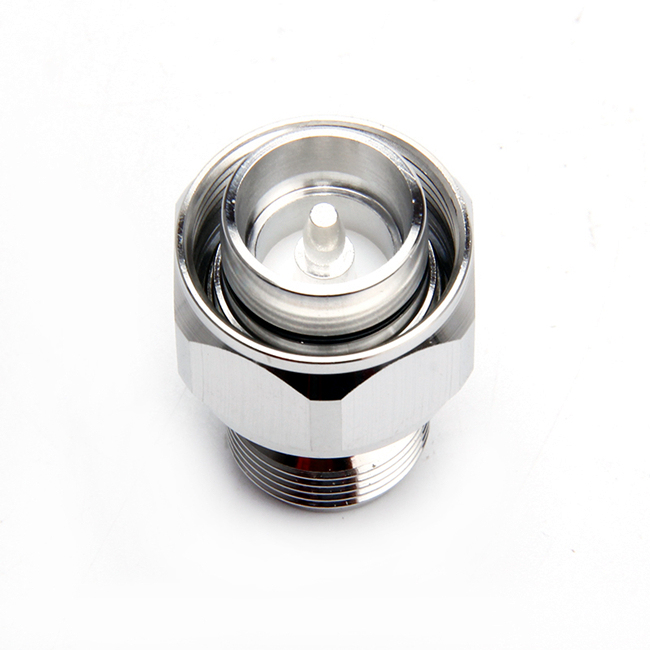

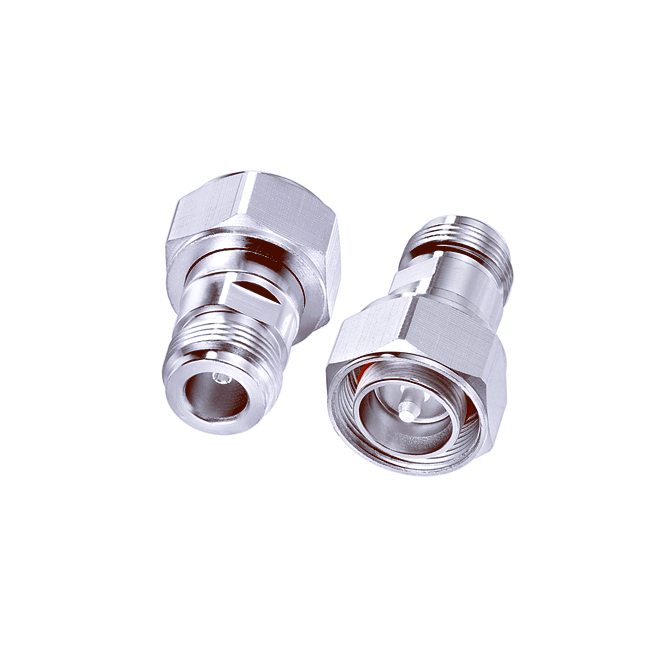

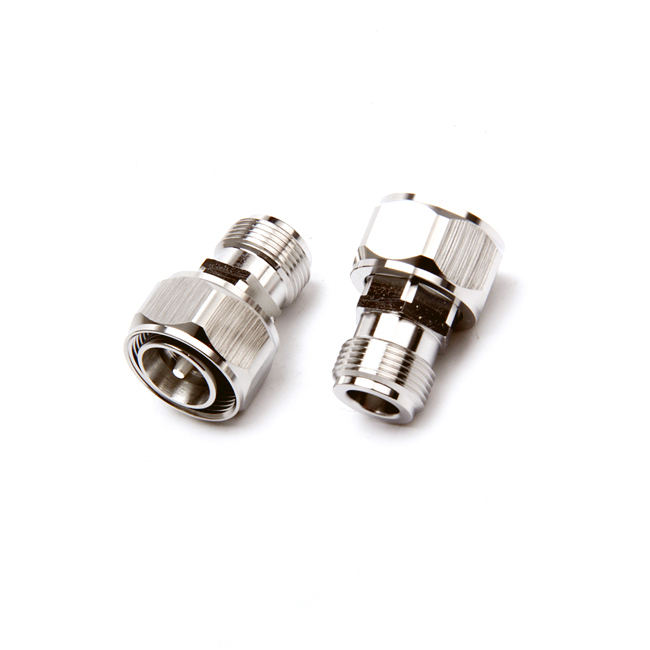

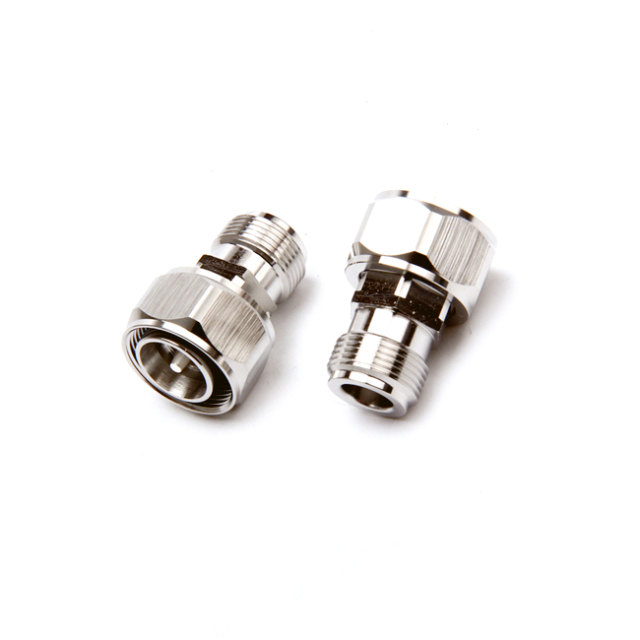

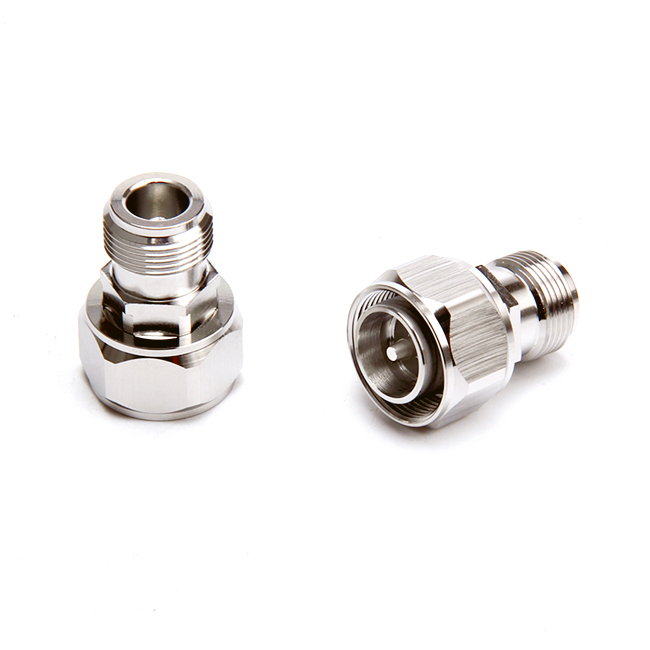

4.3-10 Mini DIN Male to N Female RF Coaxial Adapter For Telecommunication
|
Electrical
|
|||
|
Impedance
|
50Ω
|
||
|
Frequency range
|
0~6GHz
|
||
|
Working Voltage
|
2700V max
|
||
|
Withstand Voltage
|
4000V rms
|
||
|
VSWR:
-Straight
|
≤ 1.2
|
||
|
Contact resistance:
-center contact
-outer contact
|
≤5mΩ
≤5mΩ
|
||
|
Insulation resistance
|
≥10000MΩ
|
|
Mechanical
|
|||
|
Temperature range
|
-55°C~+155°C
|
||
|
Durability(matings)
|
>500
|
|
Material and plating
|
|||
|
Piece part
|
Material
|
plating
|
|
|
Body
|
Brass
|
Nickel plated or Tri-Metal
|
|
|
Center conductor
|
Brass or Phosphor Bronze
|
Gold or silver plated
|
|
|
Crimping suite
|
Copper alloy
|
Nickel plated
|
|
|
O-ring sealing
|
6146 silastic
|
||
|
Insulator
|
PTFE
|
||
